Holden Captiva 2006 - 2015 replacement flip key casing with DW05 key blade

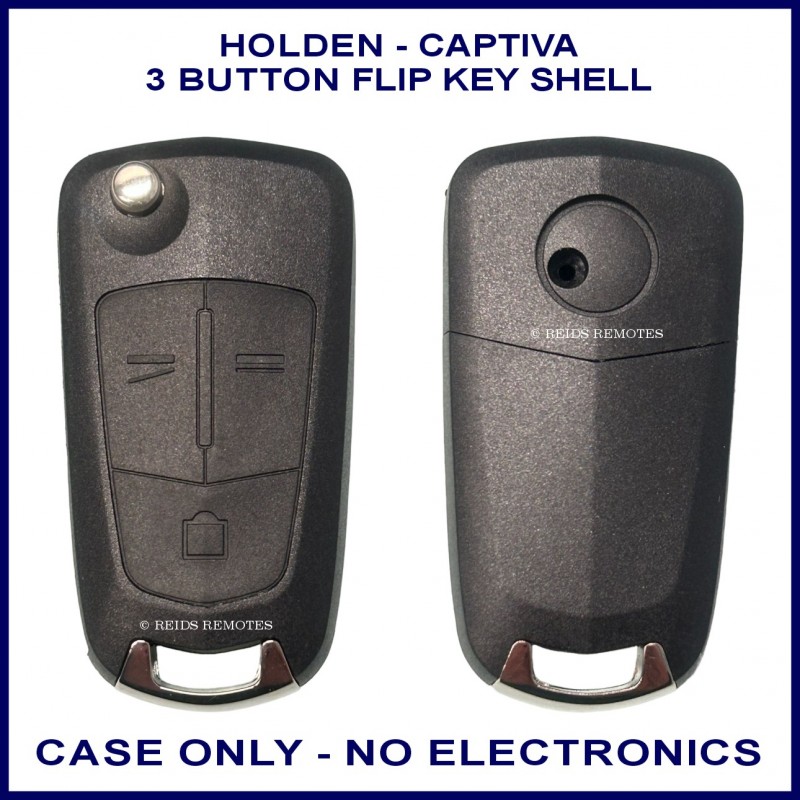

Why replace your entire remote flip key just because the case or shell has broken away from the key blade. Here we offer you a top quality replacement for your Holden Captiva 2006 - 2015 3 button remote flip key shell.

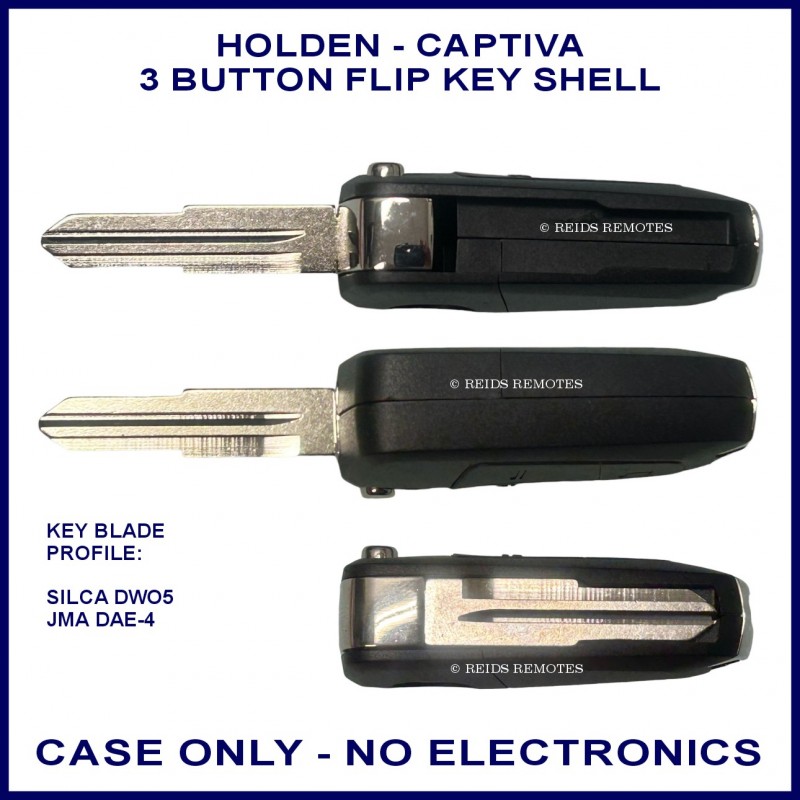

THIS KEY BLADE IS CUT ALONG THE OUTER EDGES OF THE BLADE AND MATCHES - SILCA DW05 OR JMA DAE-4

As long as your remote control module still works, you can have the blade of this key cut to match your existing key and insert the remote module and transponder chip and you are up and running again.

If swapping the electronics over yourself, you should take great care to position the battery contact correctly or the remote will not work when you close up the case.

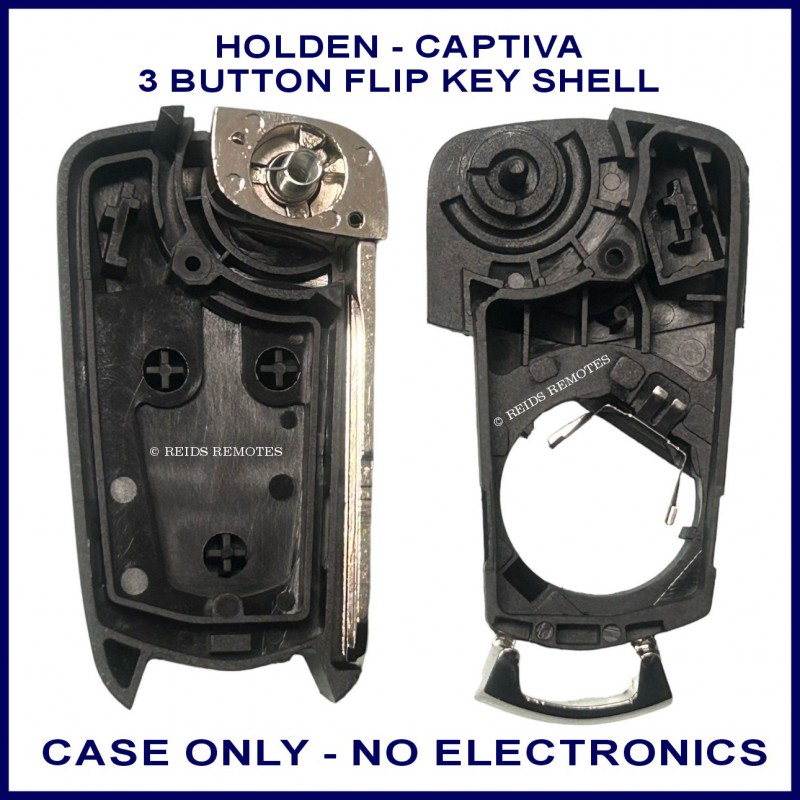

There is a locating lug shown in the 3 image near the top of the back section of the flip key shell. This is easily broken when tensioning the flip spring so please take car to not snap it off when opening or closing the case. It is not vital to the fitnemt of the case but does add firness to the fit of the case.

If you come into our East Victoria Park workshop we will be happy to cut the key, swap over your case and test your battery, while you wait. It is always best to have the car present when getting the key cut so it can be properly tested for smooth operation in doors and ignition.

WE CHARGE $50 FOR THIS SERVICE TO BE DONE AT OUR WORKSHOP

Please note that the dimensions shown under the DATA SHEET tab are of the flip key when the blade is folded in and should be used as a guide only.

If you do not live close by you can of course order this key shell and take it to your local key cutting shop and have them cut the blade to match your existing key. Then you can swap the remote module and transponder chip into the new shell and you are up and running.

Your original Holden flip key will be screwed and glued together. The screw is under the Holden logo on the back. We have found these particular keys can be very tricky to get apart. You should take great care in taking the old shell apart to avoid damaging the circuit board or transponder chip. This shell features a screw through the back cover for added firmness once assembled.

We do advise that you use some contact glue around the edges of the shell when re-assembling it to ensure a firm fit.

This shell is made to a very high standard and the machining of the key blade is very accurate. We regularly have people bring in keys that they have purchased on eBay only to find that the blade is not machined to the correct dimensions or the circuit board does not fit well in the shell etc.

Even 0.01mm difference in the dimensions of the key blade can make it not fit correctly and so not work correctly when cut.
