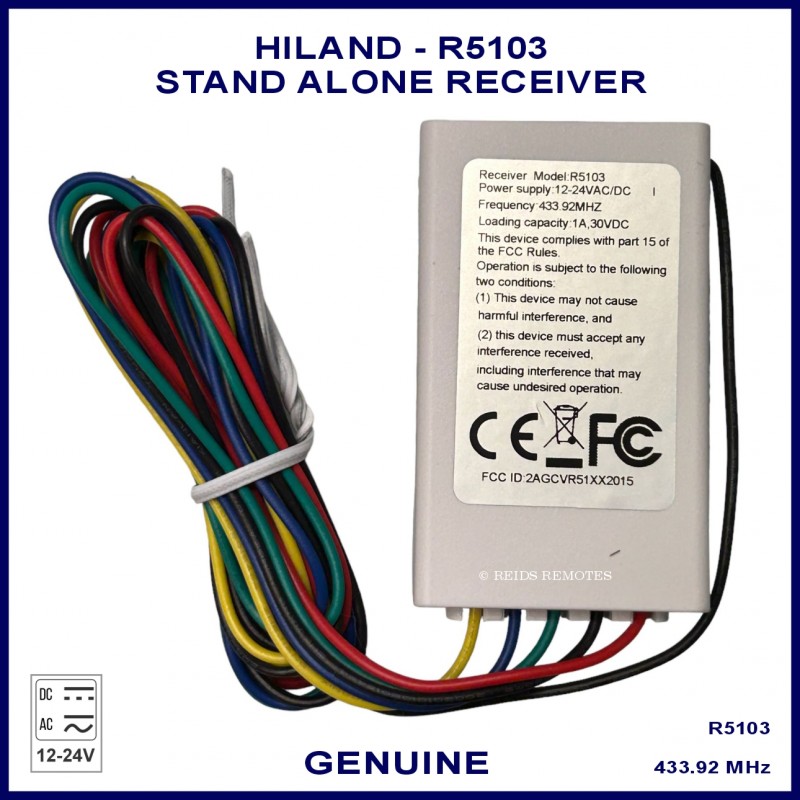

Hiland R5103 300 capacity pre-wired mini stand-alone receiver

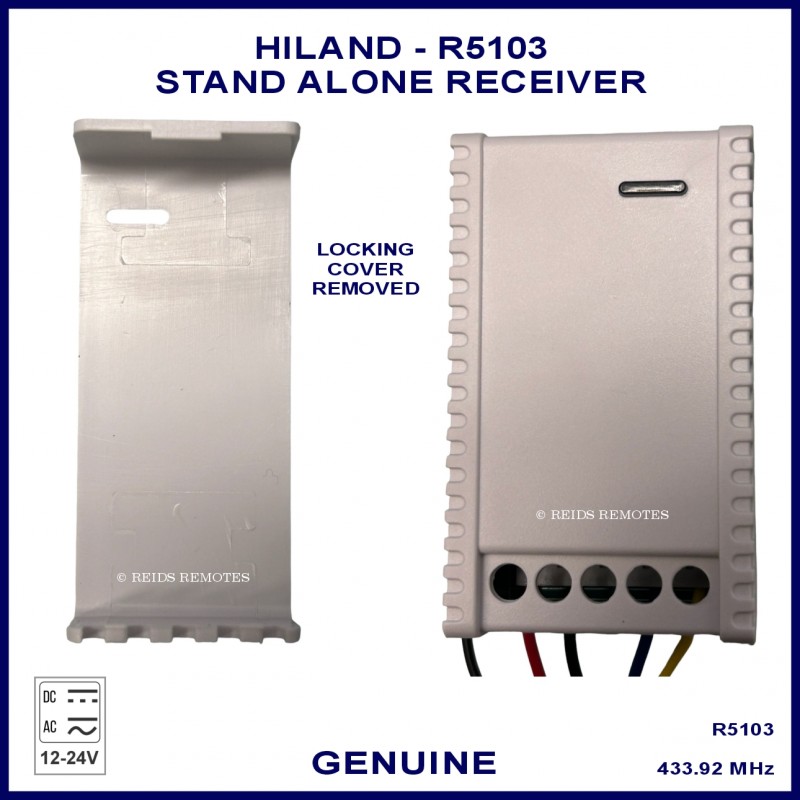

This Hiland R5103 433MHz stand alone receiver can work with all rolling code Hiland remotes in the range as shown under the Compatible items tab. This is a very compact receiver measuring just 58mm X 34mm X 20mm.

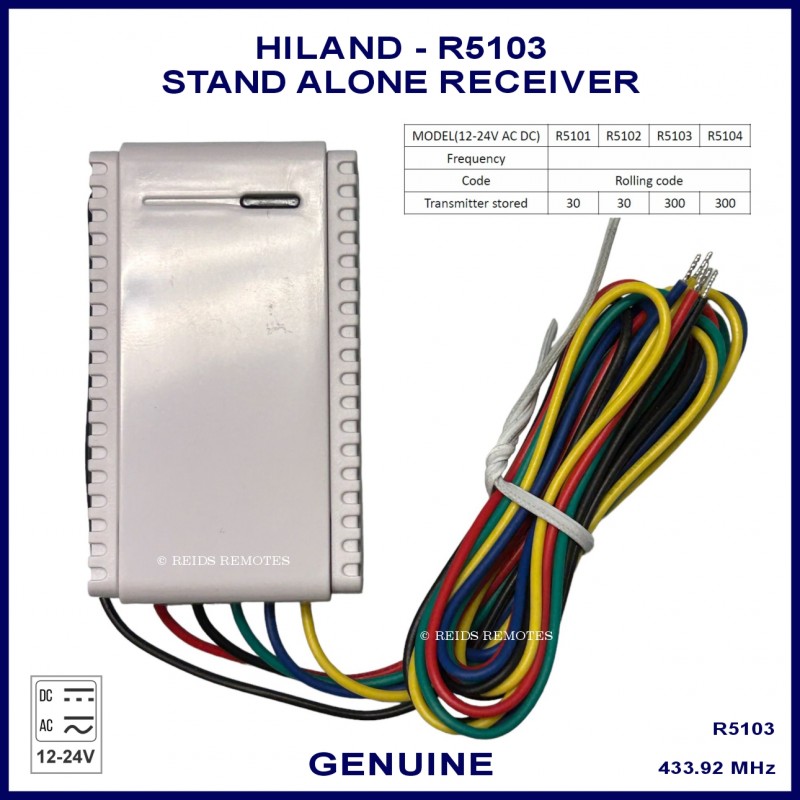

The receiver can store 30-300 codes in rolling code mode.

It can operate between 12V to 24V AC/DC

Opperating temperature is 20C to 60C

The relay contact load capacity is 1A 30V DC

The receiver can work in latching or non-latching modes.

An installation manual is included in the packaging.

As this receiver is 1 channel it can only operate 1 garage door or gate or other output.

In some cases we can provide wiring diagrams to help with connecting this to your garage motor. Just let us know the make and model of motor you plan to connect it to and we will do our best to provide a diagram or instructions on where to find the auxiliary connectors on the garage motor.

This receiver unit needs constant power and in the case of most overhead sectional door motors you can draw power from the motor no problem as they usually have AUX outputs for this. But in the case of some garage motors particularly roller door motors you may need an external power supply to connect the power as there may not be any aux output points on the motor.

If you are not certain that the remotes you have are compatible please feel free to email us a photo of the remotes and your motors and we will be more than happy to help you work out what options you have and what the simplest solution will be.

We offer a 12 Month Warranty on receivers in line with the manufacturer conditions, so you can buy your new receiver with full peace of mind and confidence that should there be a problem you are covered.

If you have any issues during programming please call us and we will try to talk you through it. We can also come and program your new remote anywhere across the Perth metro area just select Deliver and Program as your preferred delivery method at Checkout.
