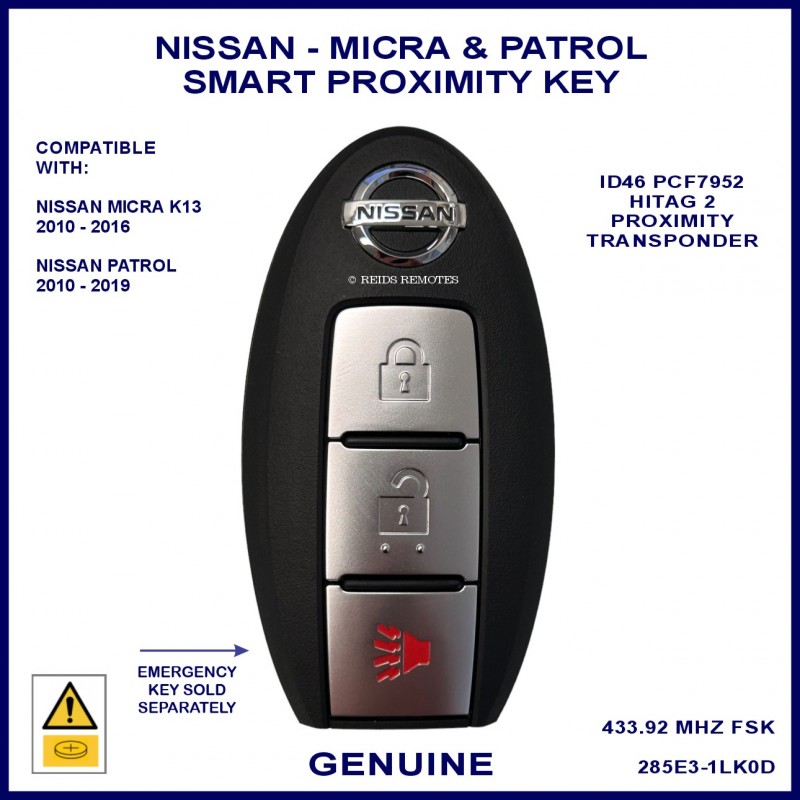

Nissan Micra 2010-16 & Patrol 2010-19 3 button smart key genuine TWB1U825

This 3 button genuine Nissan smart remote key or proximity key can be used with the models listed in the table below. The transponder and remote can only be coded to the vehicle using specialist diagnostic equipment and this can be done in our store or by your local automotive locksmith, some mechanics or auto electricians.

The emergency key is NOT included in the price but the remote comes with a battery already fitted.

A compatible emergency key can be purchased under the Compatible items tab.

This key can be used with:

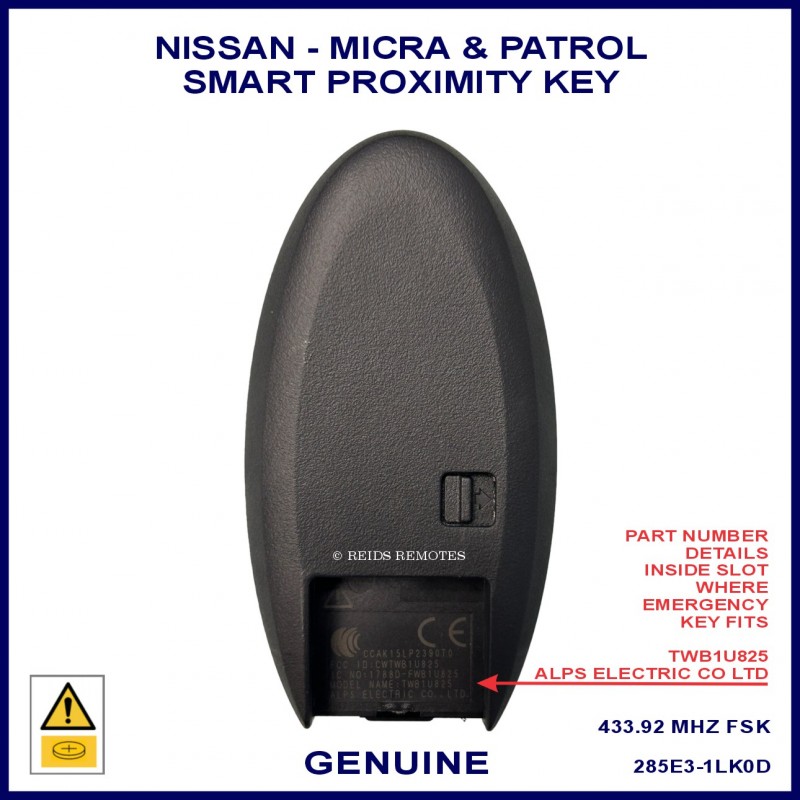

The information in the table ablove is intended as a guide only. To be sure you are choosing the correct smart key, please check the details printed on your current key behind the emergency key. You can remove the emergency key by pushing the release across on the back of the key and sliding out the emergency key.

GENUINE NISSAN PART: 285E3-1LK0D will have the following details:

FCC ID: CWTWB1U825

IC NO: 1788D-FWB1U825

MODEL NAME: TWB1U825

ALPS ELECTRIC CO. LTD

Alternatively you can pop into our store so we can read your existing key to confirm compatibility or send us a photo of the VIN plate from your vehicle and the key details found behind the emergency key.

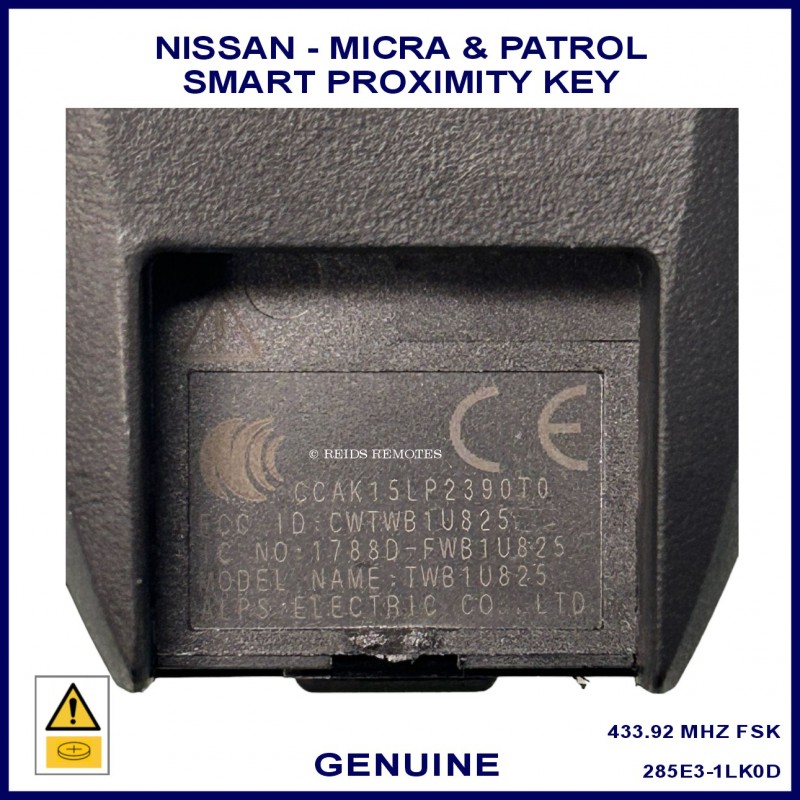

You will find the FCC ID etc behind this. You can see an example of this in the photos attached.

CHIP: SMART 46 PCF7952 - BLANK CRYPTO MODE TYPE 46

REMOTE: 433 MHz FSK

Emergency Key: NSN14

We charge $90 to code this type of smart key and cut the emergency key blade. You will need to call to make an appointment.

WARNING! KEEP BATTERIES OUT OF REACH OF CHILDREN. Never allow children to replace button batteries on any device. Swallowing or placing a button cell battery inside any part of the body may lead to severe or fatal injuries in as little as 2 hours or less due to chemical burns and potential perforation of the oesophagus.

If you suspect your child has swallowed a button battery or placed inside any part of the body, immediately call the POISONS INFORMATION CENTRE on 13 11 26 for prompt advice. If your child is having any difficulty breathing, contact 000.

Dispose of used button/coin batteries immediately and safely. A battery can still be dangerous even when it can no longer operate the device. Place sticky tape around both sides of the battery and dispose of it immediately out of reach of children in an outside bin or recycle safely.

Please see button battery safety information from the Australian Competition & Consumer Commission (ACCC).

GEN REF: 285E3-1LK0D

MK REF: MK5210-11092

RK REF: DPN42-23649
