Hyundai I30 GD 3 button flip key for models from 2011 - 2017 OEM

This OEM Hyundai 3 button flip key is used with Hyundai I30 GD models from 2011 - 2017.

The part number is 95430-A5101 and the key has an ID60-80 transponder chip. The remote transmits on the 433 MHz frequency for the Australian market.

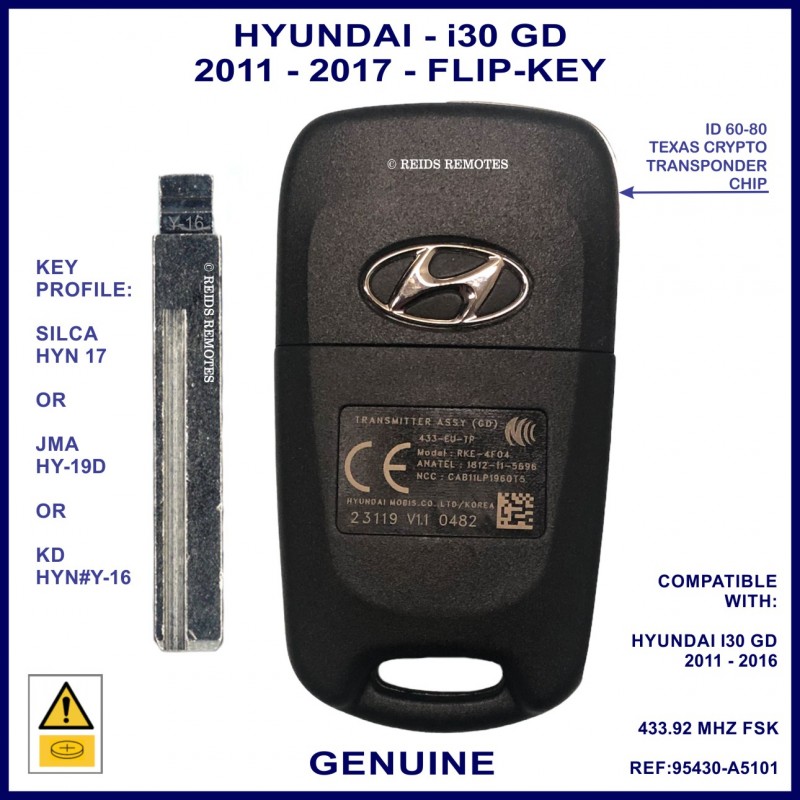

The sticker on the back of your remote should match the following information:

TRANSMITTER ASSY(GD)

433-EU-TP

MODEL: RKE-4F04

ANATEL: 1812-11-5696

NCC: CAB11LP1960T5

HYUNDAI MOBIS.CO.LTD/KOREA

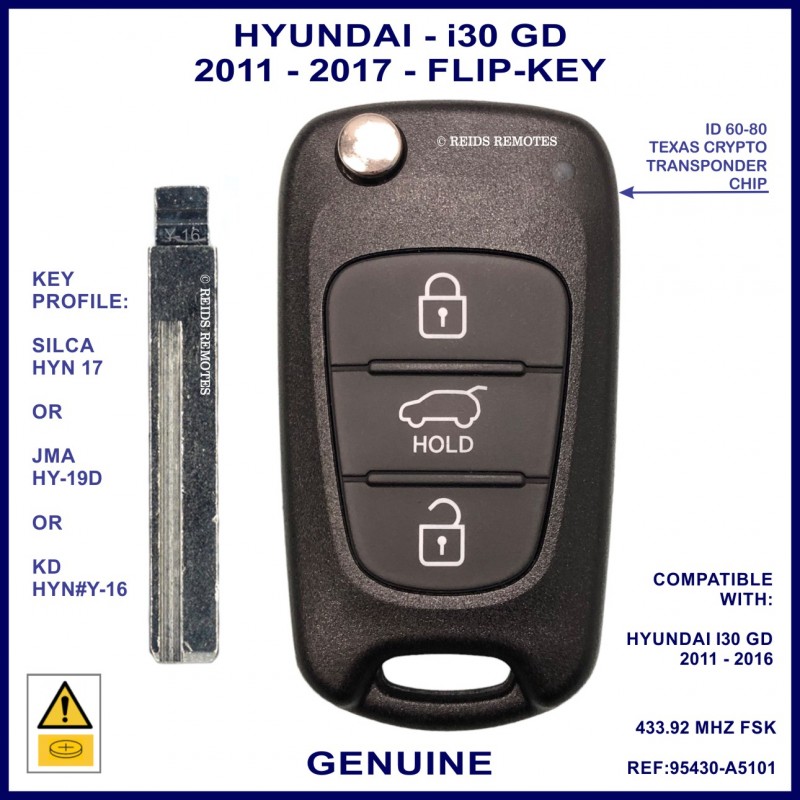

The key blade matches the Silca HYN17 or JMA HY-19D key profile as used on newer Hyundai vehicles. See photos for more information on what the key blade looks like.

Please note there are 2 versions of this newer key blade a left and a right so please take note of where the milled groove is in the key blade.

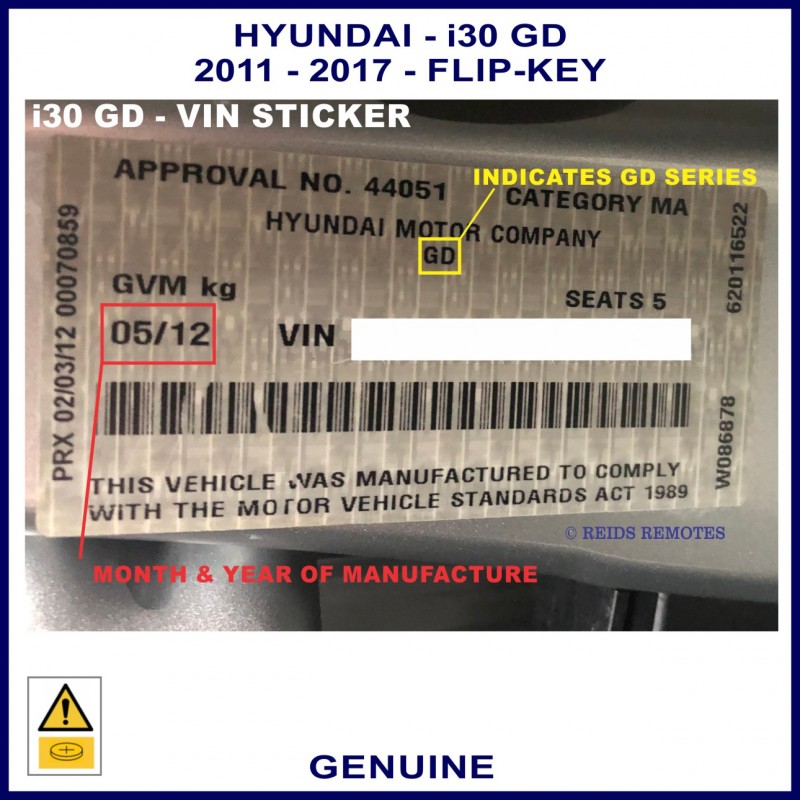

If you are not certain which key you need for your vehicle, please email us a photo of the VIN sticker from the door frame of your car. An example of what the sticker looks like is shown in the photos attached. From thi we can advise what you need and which options you have from OEM or aftermarket.

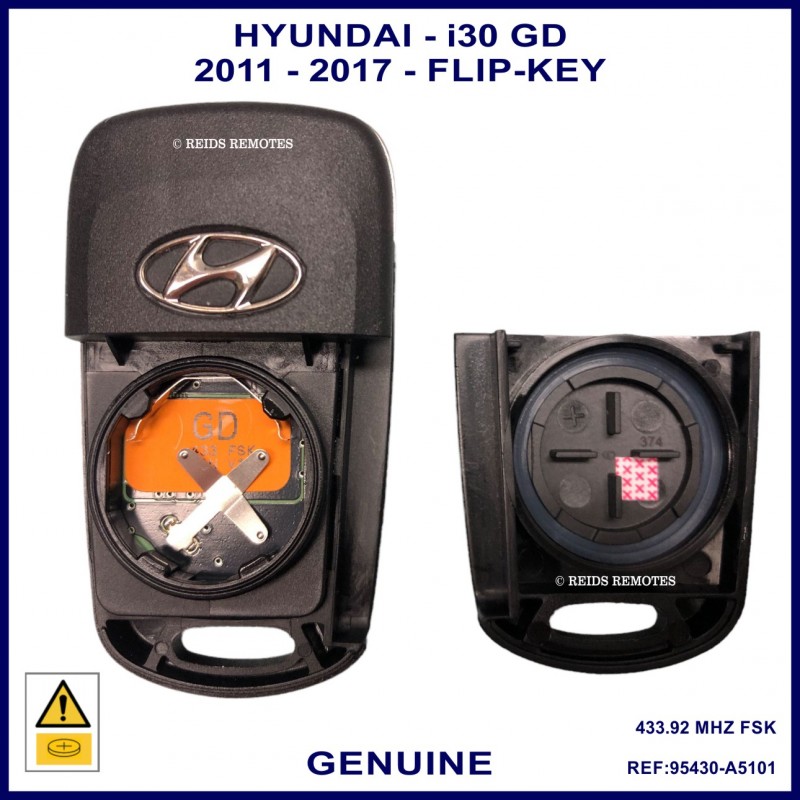

This style of flip key body was used on many Hyundai models but the keys can have different circuit boards inside. Even if your key looks identical it may not be same as this one here so please check your vehicle year and model is listed as being correct for this key before you place an order.

If the button pad on your key is damaged or the key shell is broken but the remote still works and the transponder chip is still ok you can just replace either the button pad or the entire shell and use the circuit board and chip from your old key. This is a much cheaper option if that is all you need. You can choose these options under the Compatible Items section on this page.

We offer both this OEM flip key and a selection of aftermarket flip keys for this vehicle. Where this OEM flip key has a rubber button pad and is prone to cracking the aftermarket keys we offer are very strong and use plastic button pads mostly and are generally stronger and more durable. See the options under Compatible Items. In most cases you can choose from over 10 different styles of flip key including some coloured flip keys if you like.

This key will need to ce cut and coded to your vehicle. This is a pretty straight forward process if you already have a working key but if you have lost your only key this process becomes much more complicated and expensive. It is always advisable to have a spare key, evenif the key does not have the remote part as this will save you hundred of dollars if you lose your flip key.

We can do this cut & code service for you at our shop in East Victoria Park WA or you can have it done by a licensed locksmith close to where you live. The transponder chip and remote can only be coded using diagnostic equipment and so cannot by coded by the user themselves unless you have this specialist equipment.

WARNING! KEEP BATTERIES OUT OF REACH OF CHILDREN. Never allow children to replace button batteries on any device. Swallowing or placing a button cell battery inside any part of the body may lead to severe or fatal injuries in as little as 2 hours or less due to chemical burns and potential perforation of the oesophagus.

If you suspect your child has swallowed a button battery or placed inside any part of the body, immediately call the POISONS INFORMATION CENTRE on 13 11 26 for prompt advice. If your child is having any difficulty breathing, contact 000.

Dispose of used button/coin batteries immediately and safely. A battery can still be dangerous even when it can no longer operate the device. Place sticky tape around both sides of the battery and dispose of it immediately out of reach of children in an outside bin or recycle safely.

Please see button battery safety information from the Australian Competition & Consumer Commission (ACCC).

MK REF: MK5501 07556

BLADE REF: MK5539 00299

LSC REF - HY95430A5101 15115

RK REF: DPHY19 24359

GEN REF - 95430-A5101-25422

BLADE GEN REF: 81996-2V101 01553
