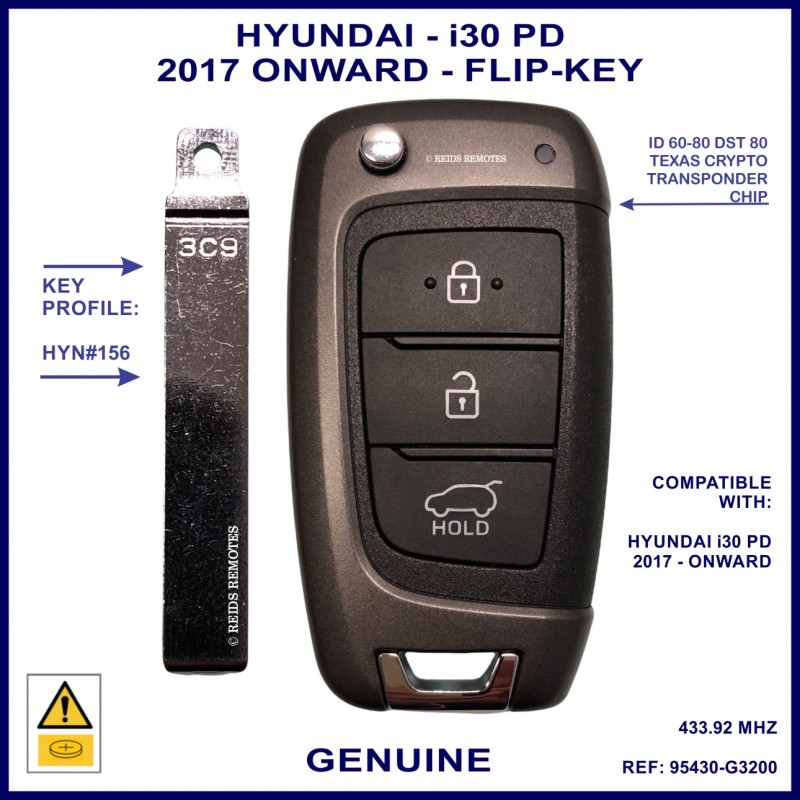

Hyundai I30 PD 2017 onward genuine 3 button flip key 94530-G3200

This OEM 95430-G3200 Hyundai 3 button flip key is used with Hyundai I30 PD models from 2017 onward. The parts sticker on these keys are usually removed before the keys are issued and so you will need to rely on the vehicle VIN sticker to confirm if this is the correct key for you.

The part number is 95430-G3200 and the key has an ID60-80 Texas Crypto transponder chip. The remote transmits on the 433 MHz frequency for the Australian market.

The Hyundai I30 PD series can take a maximum of 4 remote controls and a maximum of 8 transponder chips programmed to the vehicle. All remotes and transponders are first deleted and then re-programmed to the vehicle in the programming procedure.

The key blade used on this vehicle is a new profile, not used on Hyundai vehicles before.

The key blade part number is 81996-G8000 and the roll pin part number is 81926-J9000 - BOTH SOLD SEPARATELY.

The compatible Silca reference is KIA9 and the KD reference is HYN#156.

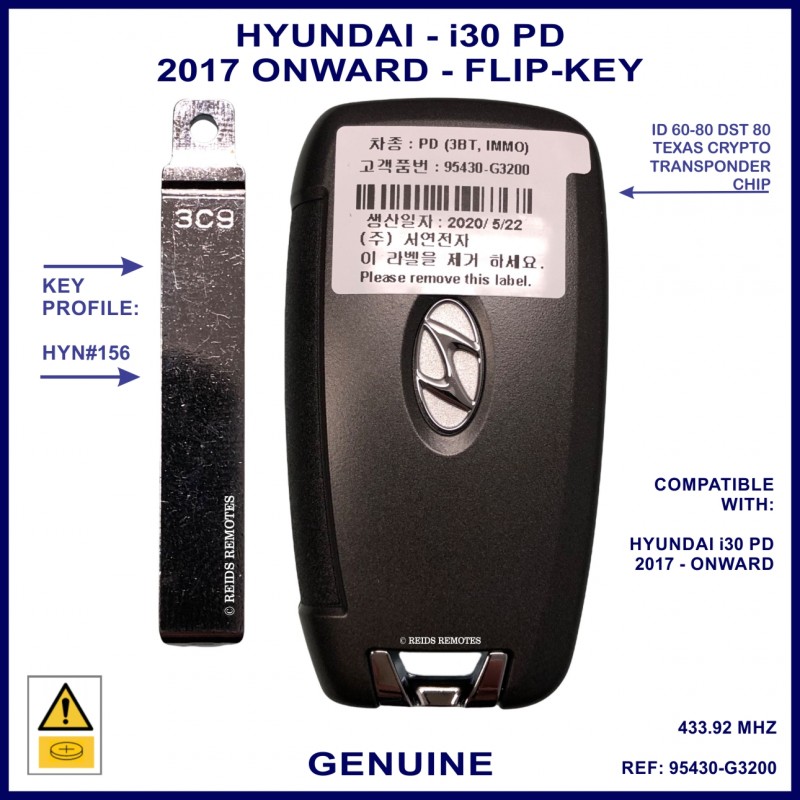

See photos for more information on what the key blade looks like.

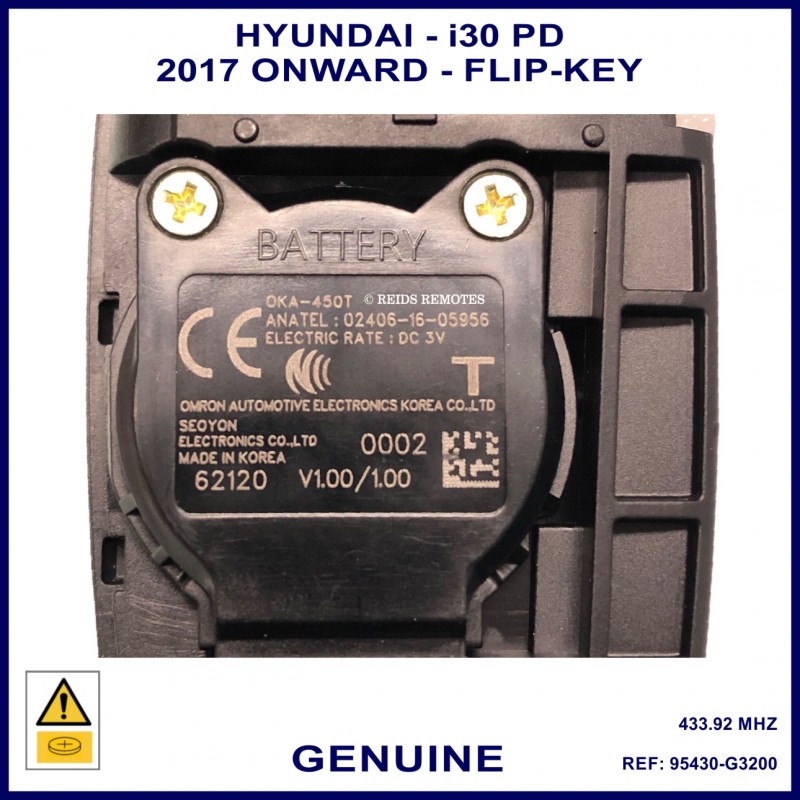

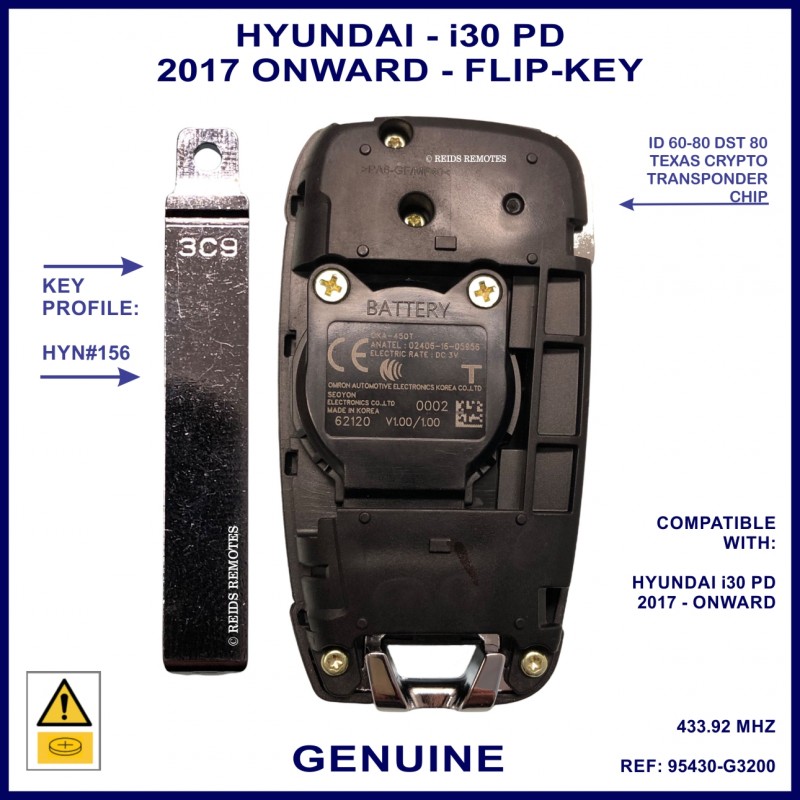

Inside the back cover of the key are part details printed on the battery cover as shown in the attached photos. These details should include:

OKA-450T

ANATEL: 02406-16-05956

ELECTRIC RATE: DC 3V

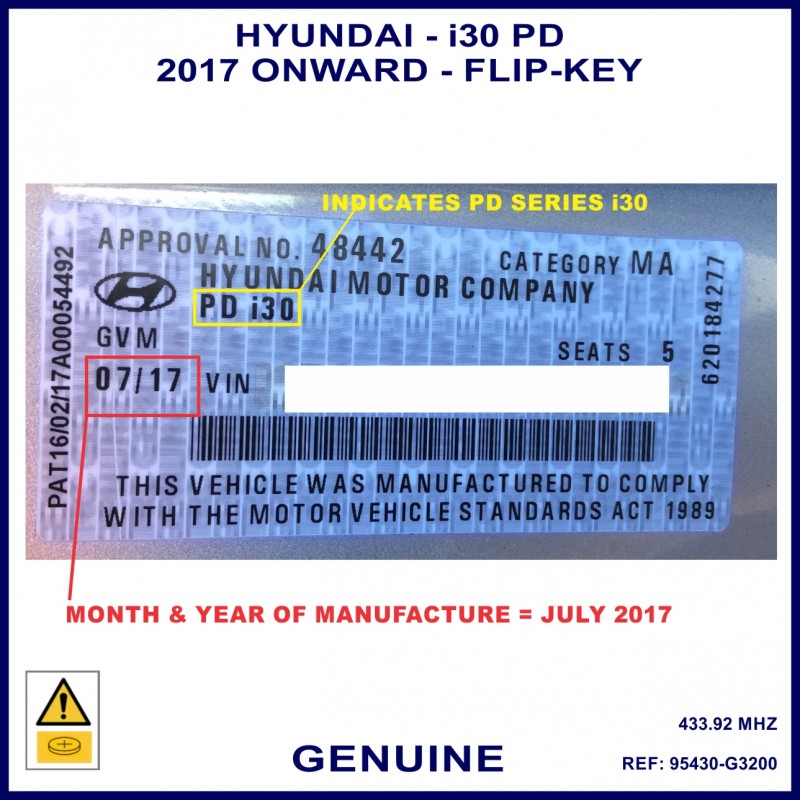

If you are not certain which key you need for your vehicle, please email us a photo of the VIN sticker from the door frame of your car. An example of what the sticker looks like is shown in the photos attached. From this we can advise what you need and which options you have from OEM or aftermarket.

We offer both this OEM flip key and a selection of aftermarket flip keys for this vehicle. See the options under Compatible Items. In most cases you can choose from over 10 different styles of flip key including some coloured flip keys if you like.

This key will need to be cut and coded to your vehicle. This is a pretty straight forward process if you already have a working key but if you have lost your only key this process becomes much more complicated and expensive. It is always advisable to have a spare key, even if the key does not have the remote part as this will save you hundreds of dollars if you lose your flip key.

We can do this cut & code service for you at our shop in East Victoria Park WA or you can have it done by a licensed locksmith close to where you live. The transponder chip and remote can only be coded using diagnostic equipment and so cannot by coded by the user themselves unless you have this specialist equipment.

WARNING! KEEP BATTERIES OUT OF REACH OF CHILDREN. Never allow children to replace button batteries on any device. Swallowing or placing a button cell battery inside any part of the body may lead to severe or fatal injuries in as little as 2 hours or less due to chemical burns and potential perforation of the oesophagus.

If you suspect your child has swallowed a button battery or placed inside any part of the body, immediately call the POISONS INFORMATION CENTRE on 13 11 26 for prompt advice. If your child is having any difficulty breathing, contact 000.

Dispose of used button/coin batteries immediately and safely. A battery can still be dangerous even when it can no longer operate the device. Place sticky tape around both sides of the battery and dispose of it immediately out of reach of children in an outside bin or recycle safely.

Please see button battery safety information from the Australian Competition & Consumer Commission (ACCC).

MK REF: MK2230-07867

GEN REF - 95430-G3200

LSC REF - HY95430G3200-17296
