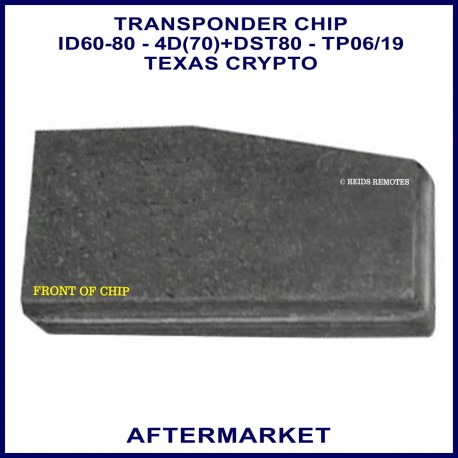

ID60-80 - 4D+(70)DST80 - TP06 Texas 80bit transponder chip

This type of transponder is generally known as a "programmable" chip in that it needs to be programmed to the vehicle using diagnostic type scan tools or key programmers.

This chip will read slightly differently on different scanners or cloing devices and the codes may show as ID60-80, 4D+DST80, TP06/19 and we have shown some examples of the data you will see in the attached images.

This type of transponder are use in selected models of Hyundai, Kia, Ssangyong & Toyota vehicles.

It is not generally user programmable unless you have a diagnostic scan tool with the correct software.

It can generally only be coded to the vehicle using special equipment by a licensed locksmith or motor vehicle repairer. We can do this for you at our workshop.

Additional fees apply to have this service.

This type of chip is know as a carbon chip and they are very small and can easily be lost when a car key is opened up to change the remote battery.

Without this chip in the key head of the key, the car will not start as this chip contains security information that the car looks for every time the ignition it turned to start the car.

There are many versions of these carbon chips and all have different types of information in them. The vast majority will have a code printed on them to help identify them and most codes start with the letters PCF but not always as they can be made by different manufacturers.

These chips here sadly have nothing printed on them making them impossible to identify without a chip reader or cloning device.

MK REF: MK9205-00564
