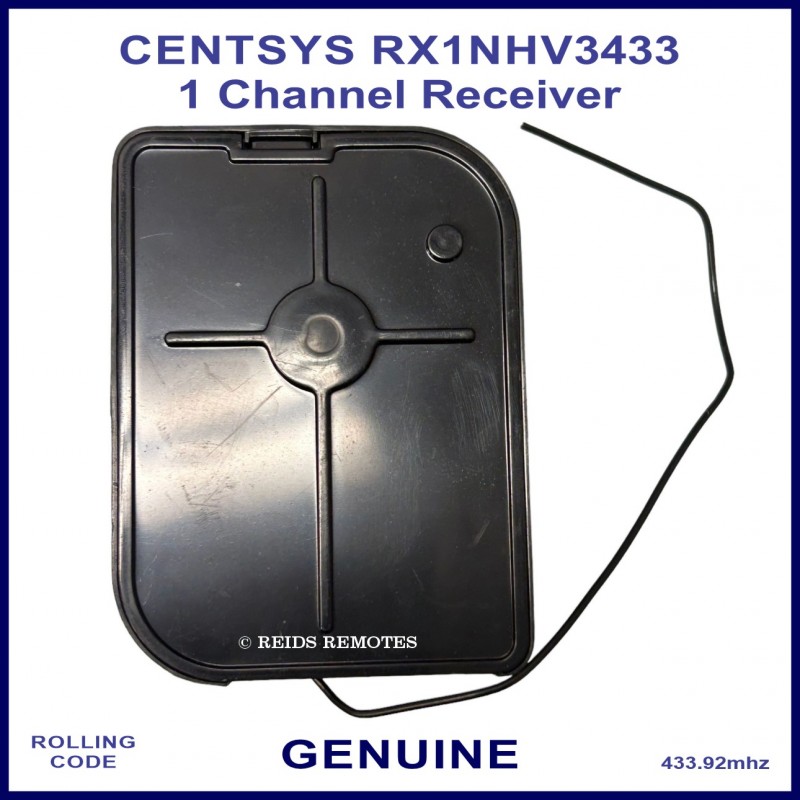

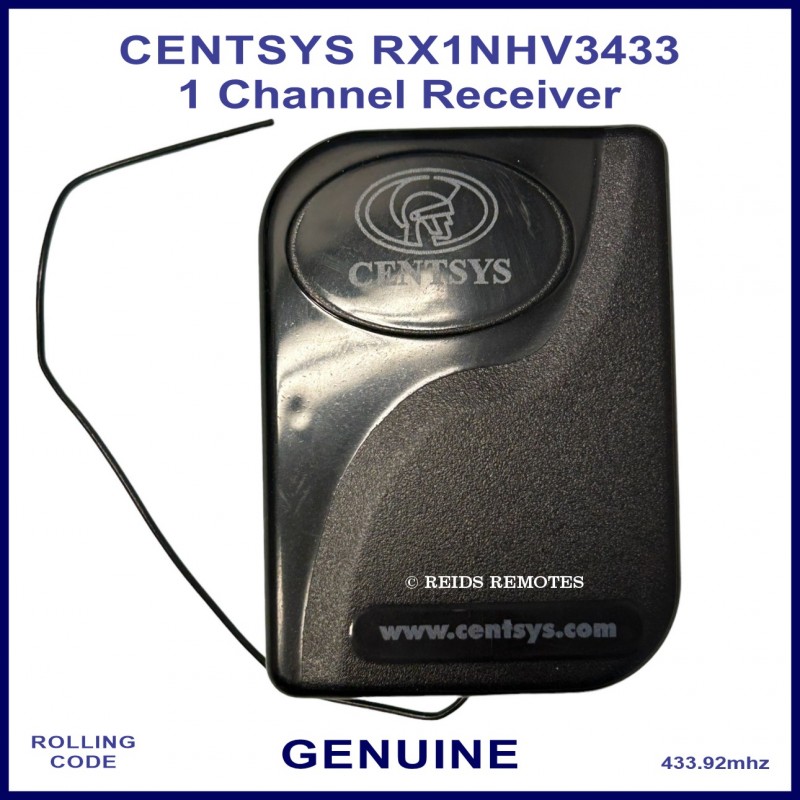

Centsys RX1NHV3433 standalone 1 channel 433MHz Nova Helix receiver unit

This Centsys Nova Helix RX1NHV3433 stand alone receiver can work with the Centsys Nova Helix range of remote controls as shown under the Compatible items tab. This is a very compact receiver measuring just 74mm X 55mm X 29mm.

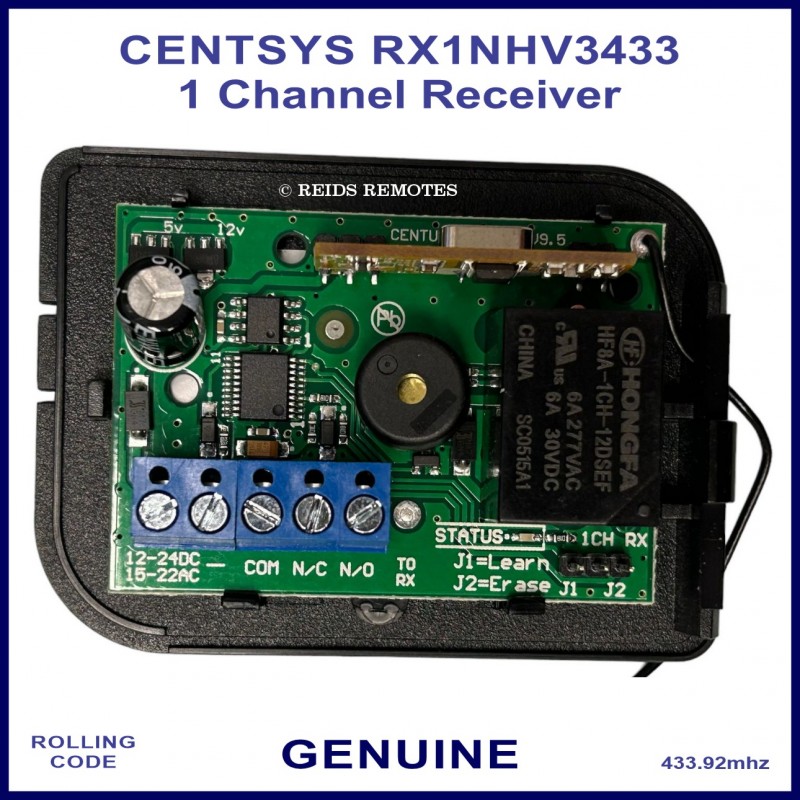

This Nova Helix receiver functionality allows for both "Master" learning or "Link" learning. Link learning is the process of bridging the J1 jumper link in the receiver in order to learn new remote buttons to the receiver. Master learning however allows you to learn a Master button on a remote which can then be used to learn additional remotes without having to access the receiver.

The Master method is handy in situations where the receiver location is not east to access or you wish to protect it from the weather. The receiver also allows for the Link method to be disabled and so the only way new remote control can be learned is via the Master remote. This can be good for security preventing unkown persons from adding their own remotes directly but should you lose the Master remote is can cause issues of course.

The Centsys Nova Helix receivers support SmartSwitch II interfacing capabillity.

These receivers also support the new timed Autolearn feature.

It can operate between 11V to 30V DC or 15V to 22V AC.

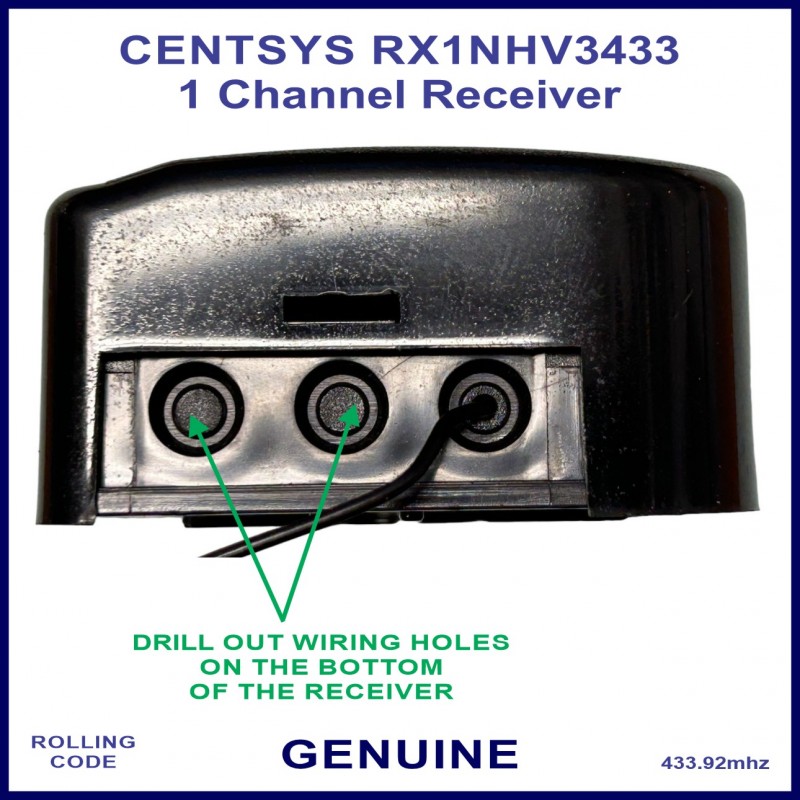

These receiver units can be wired using standard 4 core (1 channel + power) security cable available from most electrical or hobby shops such as Jaycar or Alltronics. We are happy to provide cable for connecting this unit also and it can be ordered from the compatible items tab in 30 cm increments.

An installation manual is included in the packaging.

As this receiver is 1 channel it can only operate 1 garage door or gate or other output.

In some cases we can provide wiring diagrams to help with connecting this to your garage motor. Just let us know the make and model of motor you plan to connect it to and we will do our best to provide a diagram or instructions on where to find the auxiliary connectors on the garage motor.

This receiver unit needs constant power and in the case of most overhead sectional door motors you can draw power from the motor no problem as they usually have AUX outputs for this. But in the case of some garage motors particularly roller door motors you may need an external power supply to connect the power as there may not be any aux output points on the motor.

If you are not certain that the remotes you have are compatible please feel free to email us a photo of the remotes and your motors and we will be more than happy to help you work out what options you have and what the simplest solution will be.

We offer a 12 Month Warranty on receivers in line with the manufacturer conditions, so you can buy your new receiver with full peace of mind and confidence that should there be a problem you are covered.

If you have any issues during programming please call us and we will try to talk you through it. We can also come and program your new remote anywhere across the Perth metro area just select Deliver and Program as your preferred delivery method at Checkout.
