Suzuki Swift FZ 2011 - 2017 2 button remote key with integrated ID46 PCF7961A chip

This aftermarket 2 button remote key is suited to Suzuki Swift FZ models from 2011 - 2017 which have an integrated ID46 PCF7961A transponder chip as part of the remote circuit board.

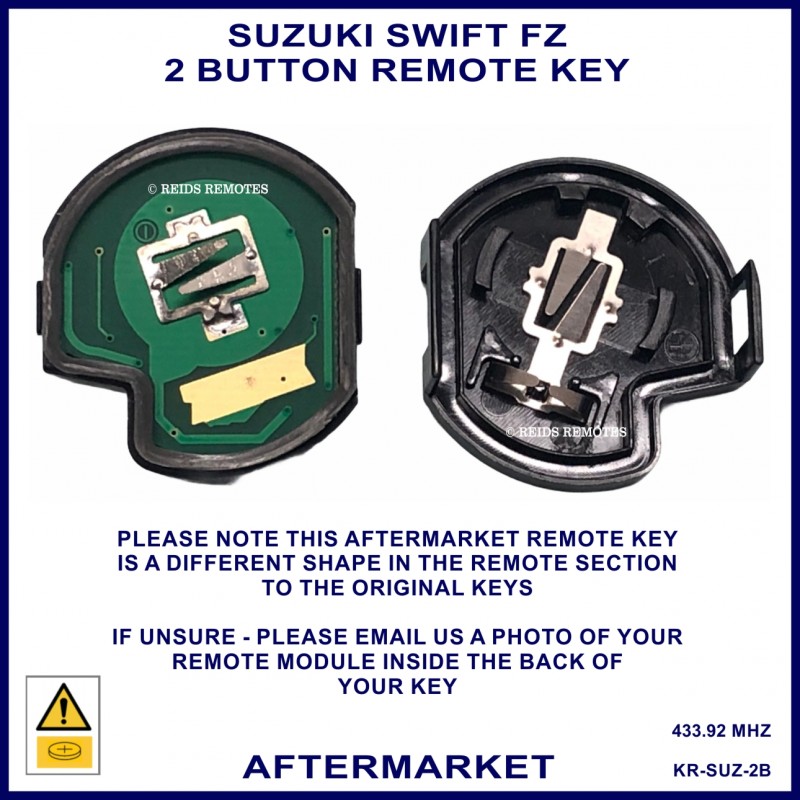

YOUR ORIGINAL REMOTE MODULE MUST BE THE SAME SHAPE AS THE ONE ON THE LEFT OF THE 2ND PHOTO. THIS INDICATES IT HAS AN INTEGRATED TRANSPONDER CHIP ON THE REMOTE CIRCUIT BOARD.

If you are unsure after looking at the photos attached you can carefully remove the screw from the back of your key and open it up. Then send us a photo of the remote modeule that is in there and we can help you confirm if this key is suited to you.

The main difference between this type of remote key and a standard Suzuki remote key is that the remote part of this is programmed to the car at the same time as the transponder chip as they are part of the same circuit board.

On traditional Suzuki remote keys the chip is in a little slot behind the black plastic on the front of the key and so the shape of the remote module has a cut out as shown in the photos. These types of remotes are programmed separately to the transponder chip, usually using a manual method of programming involving putting the key in and out of the ignition and opening and closing the drivers door a particular number of times.

Integrated remote modules can only be programmed using diagnostic equipment connected to the OBD port of the vehicle. We are licensed to do this type of programming and it will usually take approx 45 minutes to cut and program your new key at our workshop. You can book an appointment on (08) 6110 2693.

The fee to cut and program the key is shown under Compatible items and this only applies to keys we have supplied. Customer supplied keys may incur a surcharge above this fee.

If your remote key is still working but the shell is damaged you can get a new key shell from the Compatible items section.

This remote is supplied with a battery fitted and you can order spares from the Compatible items section below.

SG REF: KR-SUZ-2B-04790

WARNING! KEEP BATTERIES OUT OF REACH OF CHILDREN. Never allow children to replace button batteries on any device. Swallowing or placing a button cell battery inside any part of the body may lead to severe or fatal injuries in as little as 2 hours or less due to chemical burns and potential perforation of the oesophagus.

If you suspect your child has swallowed a button battery or placed inside any part of the body, immediately call the POISONS INFORMATION CENTRE on 13 11 26 for prompt advice. If your child is having any difficulty breathing, contact 000.

Dispose of used button/coin batteries immediately and safely. A battery can still be dangerous even when it can no longer operate the device. Place sticky tape around both sides of the battery and dispose of it immediately out of reach of children in an outside bin or recycle safely.

Please see button battery safety information from the Australian Competition & Consumer Commission (ACCC).
