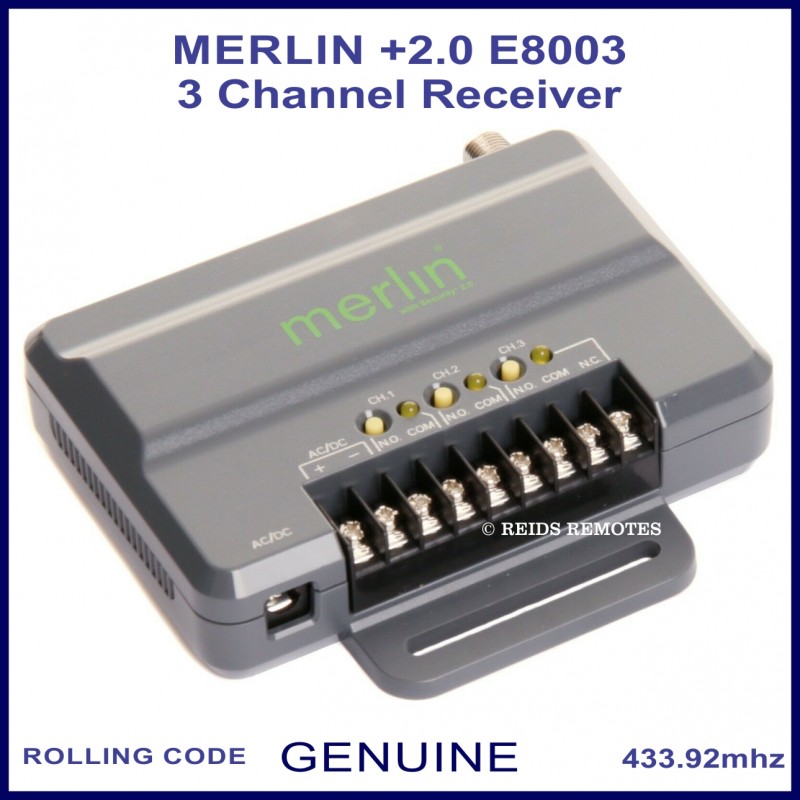

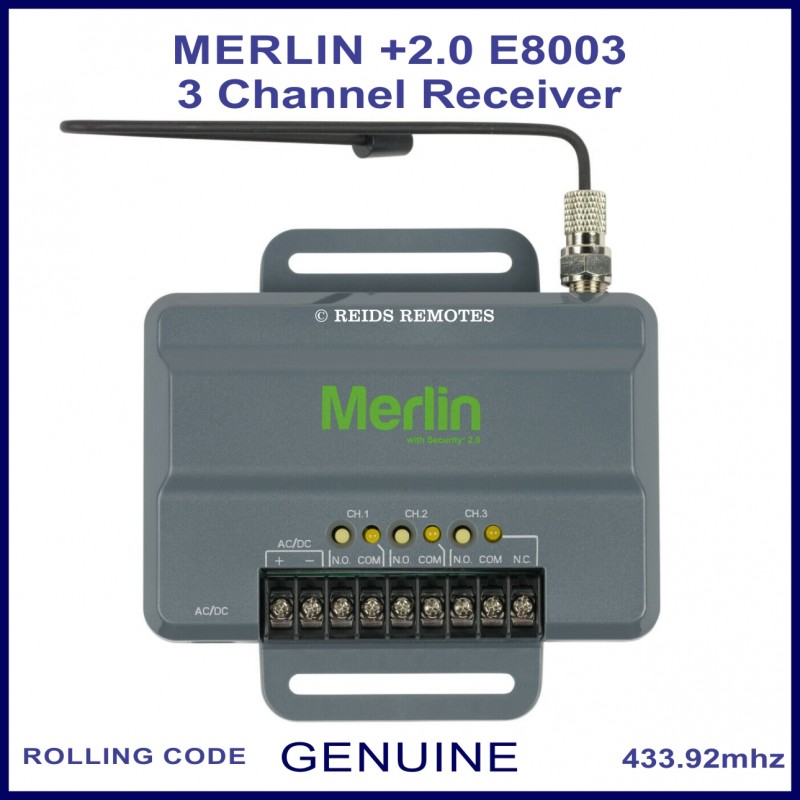

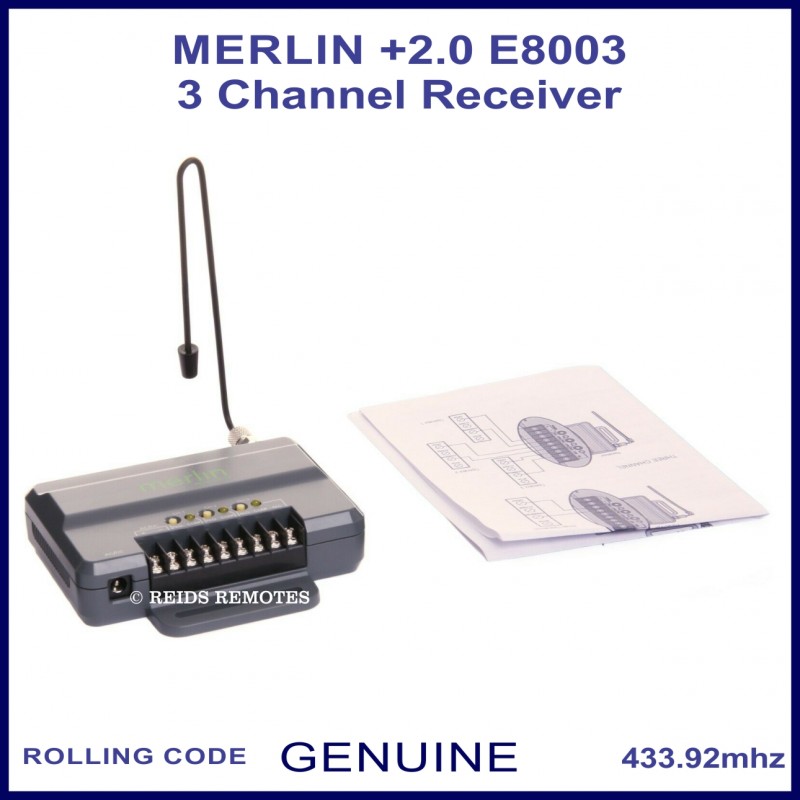

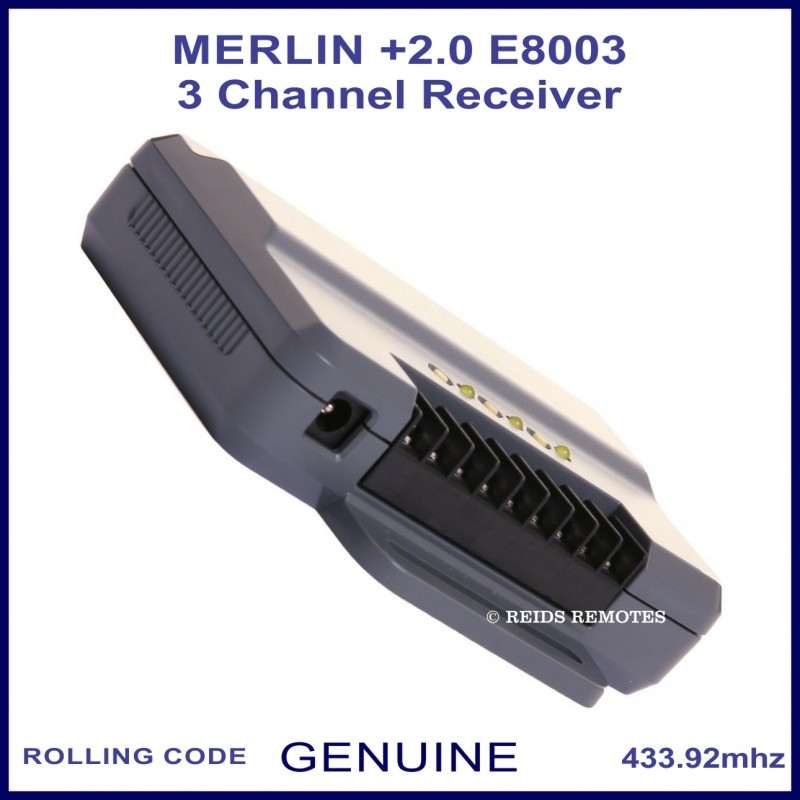

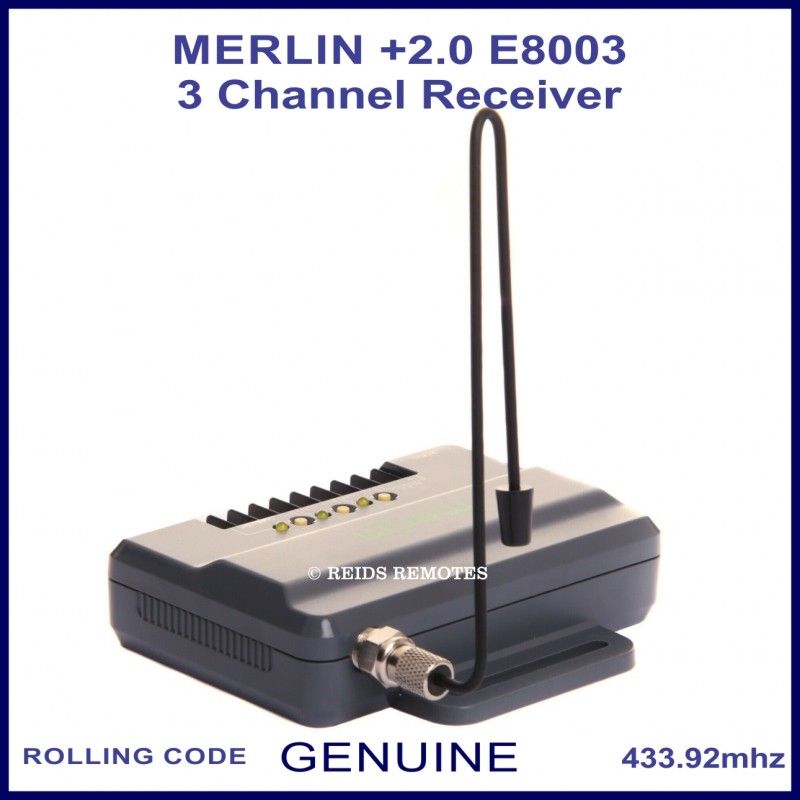

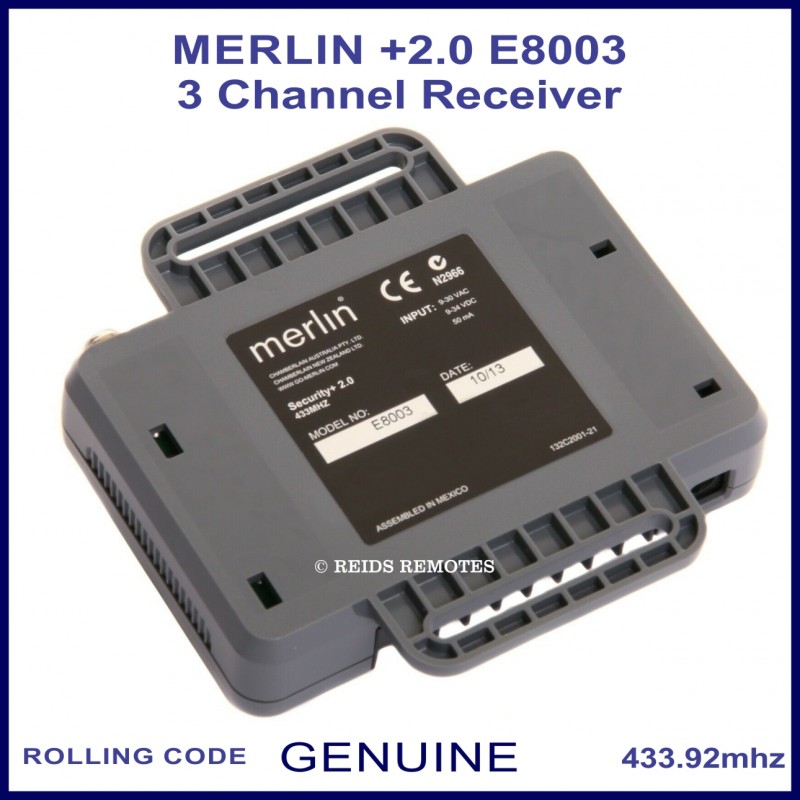

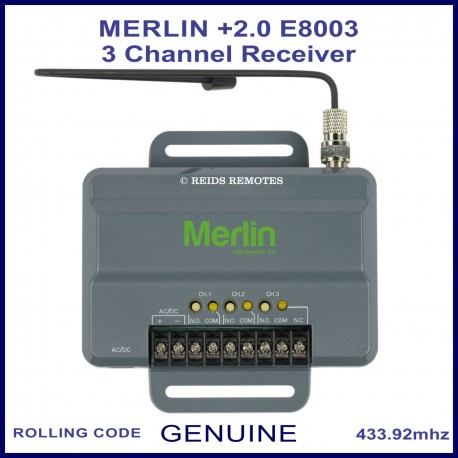

Merlin +2.0 E8003 3 channel standalone receiver unit

When you already have a Merlin +2.0 garage door motor and you wish to use the same remote to control your electric gate or other device, you can add this standalone receiver and code another button on your remote to it.

The receiver has 3 channels allowing you to control up to 3 devices or functions.

This receiver will work with any of the Merlin +2.0 remote controls including:

E943M

E945M

E950M

E960M

E840M KEYPAD

You can also use this receiver to upgrade an older Merlin motor to use the newest remote controls and this receiver is compatible with the following Merlin openers:

M650
M850
MR650
MR850
MR950
MT60P
MT60
MT230
MT5580P
MT3850
MR60
MR600
MR800
MT600
MT800
MT1000
MGA600
MGL400
MGS300
MGS500
MGS1000
XLR8
WingMate 3
WingMate 4

The Merlin E8003 receiver can be used as a single or three channel receiver to control up to commercial operators or residential door openers. The receiver can also be used with a 3-button remote control to operate the OPEN, CLOSE, and STOP feature on a commercial door operator.

Security+ 2.0TM technology provides improved security and transmitter range.

Each channel can store the following number of remote controls in total:

• CH1: 50 remote controls and 2 keypads
• CH2: 20 remote controls and 2 keypads
• CH3: 20 remote controls and 2 keypads
