Toyota Kluger Grande 4 button proximity key - 89904-48B70 electric tailgate model

Genuine 89904-48B70 Toyota 4 button proximity key remote is compatible with:

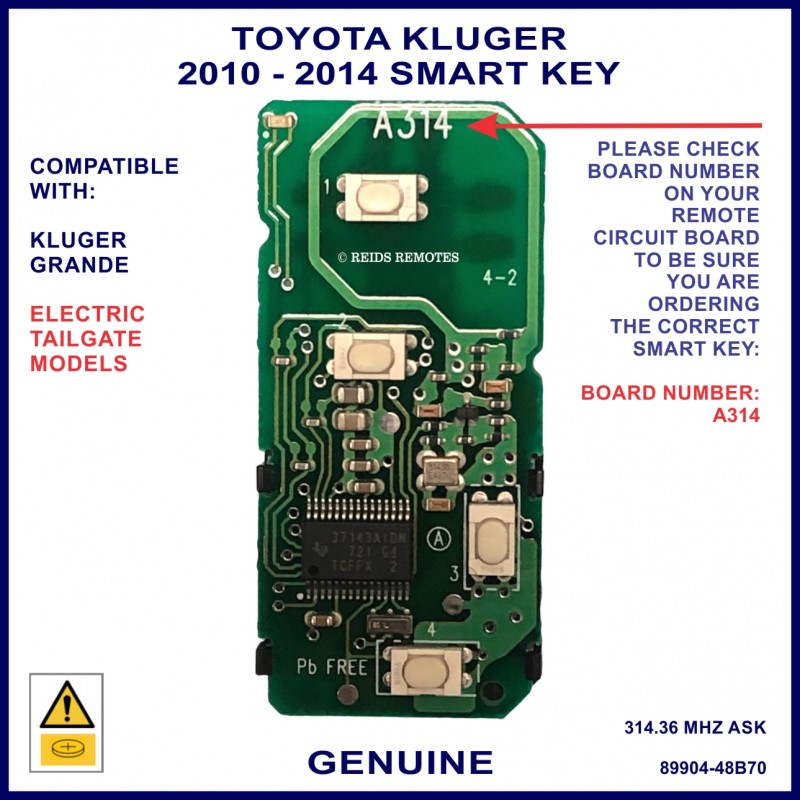

This vehicle list is intended as a guide only. The most accurate method to identify your current key is by opening the remote case and reading circuit board number as shown in the attached photos.

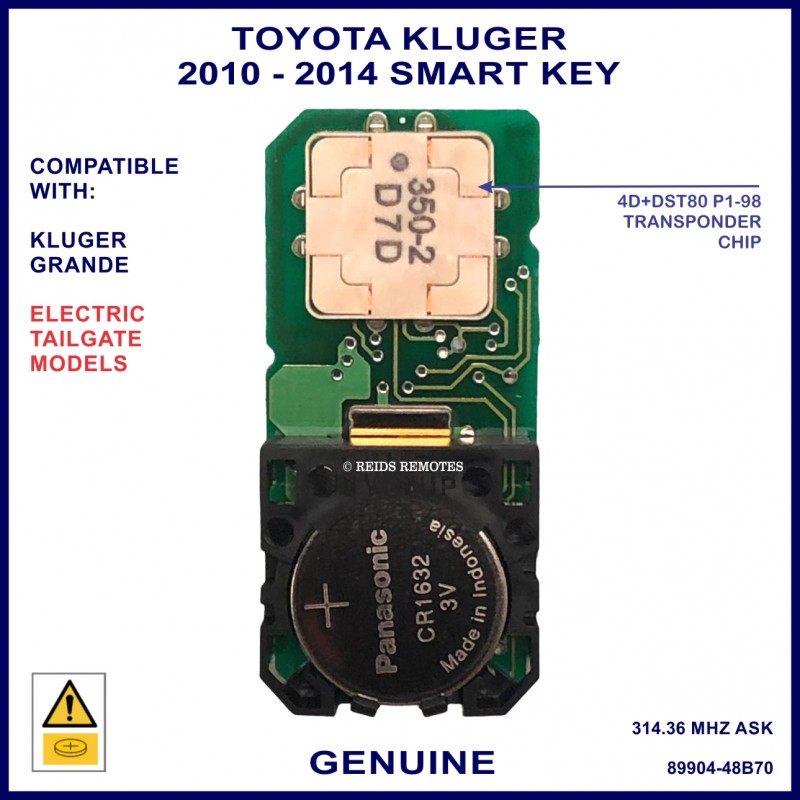

In this case it should be A314 and should have 4 buttons on the circuit board. The frequency is 314.35 Mhz and this is engraved on a small square transmitter crystal on the circuit board. See the photos for more inforamtion on this.

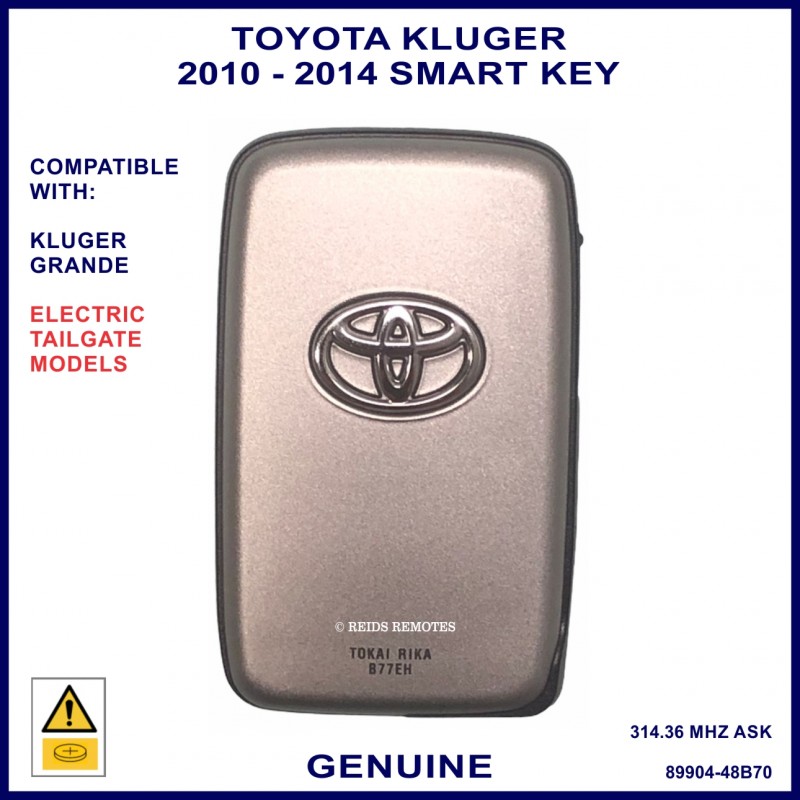

The back of your remote may have the following on it if it is also genuine:

TOKAI RIKA

B77EH

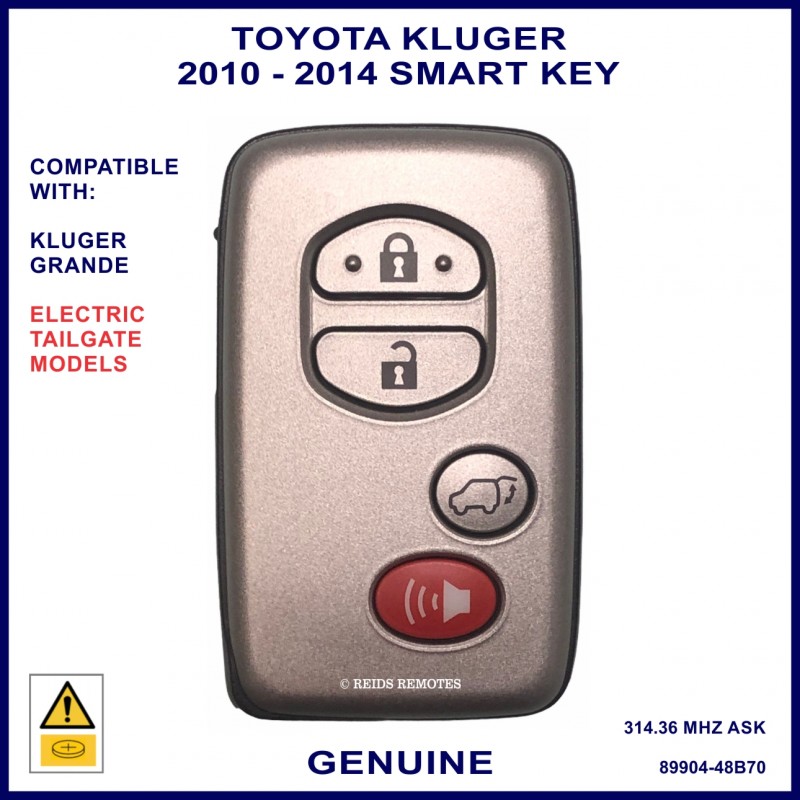

Pay particular attention to the BOOT button on your proximity key, as the model with electric open tailgate like this has an SUV logo on it as shown in the photos.

You can also come into our shop and we will scan the frequency of the remote and identify the transponder chip for you. If you are not near by you can send us a photo of the front and back of the circuit board in your current smart key and we will assist you to identify the correct replacement.

This type of smart key is also sometimes referred to as a proximity key or prox key as it allows you to enter the vehicle and start the vehicle without having to press the remote or put it in a slot or put a key in the ignition. This system is often referred to as keyless start.

This Toyota smart proximity key is supplied with a battery fitted and if you need a spare you can find them under Compatible Items.

An emergency key blade is NOT included but if you require one, you can add those from the Compatible Items section also.

This type of smart key can only be coded to your vehicle using specialist diagnostic tools by a licensed locksmith or vehicle repairer. We can code the smart key and cut your key in our workshop in East Victoria Park WA or you can have it done locally to where you live.

We charge $90 to code this type of smart key if we supply it. You will need to call to make an appointment.

Coding a spare key when you have a working key is not a huge job but if you lose your only key and then need a key made and coded this becomes a much larger and far more expensive proposition. We strongly reccomend you always have a spare key for your Toyota vehicles, especially those using a smart proximity key.

WARNING! KEEP BATTERIES OUT OF REACH OF CHILDREN. Never allow children to replace button batteries on any device. Swallowing or placing a button cell battery inside any part of the body may lead to severe or fatal injuries in as little as 2 hours or less due to chemical burns and potential perforation of the oesophagus.

If you suspect your child has swallowed a button battery or placed inside any part of the body, immediately call the POISONS INFORMATION CENTRE on 13 11 26 for prompt advice. If your child is having any difficulty breathing, contact 000.

Dispose of used button/coin batteries immediately and safely. A battery can still be dangerous even when it can no longer operate the device. Place sticky tape around both sides of the battery and dispose of it immediately out of reach of children in an outside bin or recycle safely.

Please see button battery safety information from the Australian Competition & Consumer Commission (ACCC).

GEN REF: 89904-48B70

MK3 REF: MK5056-21932
