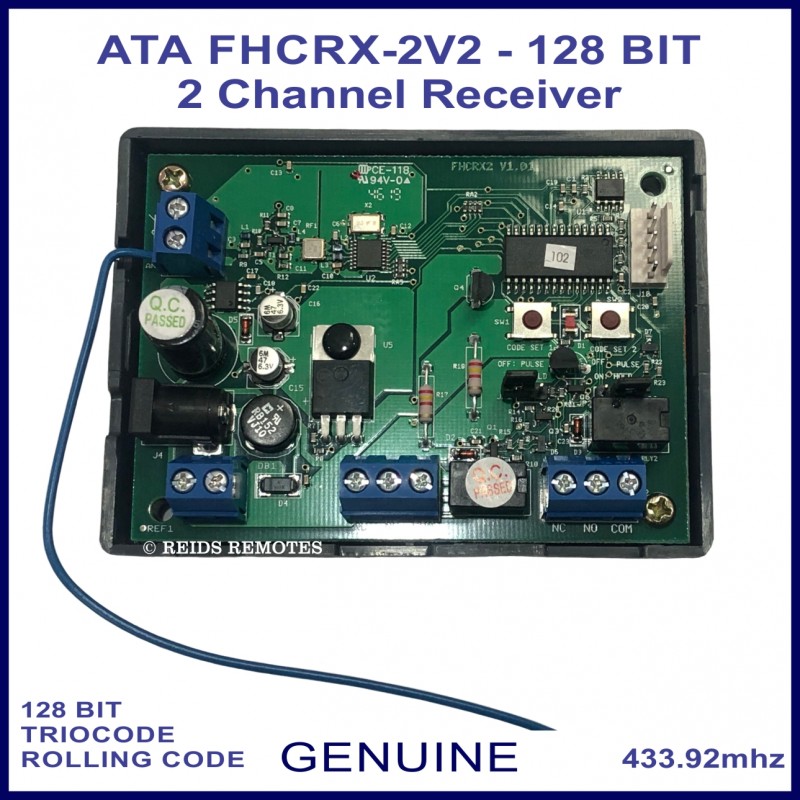

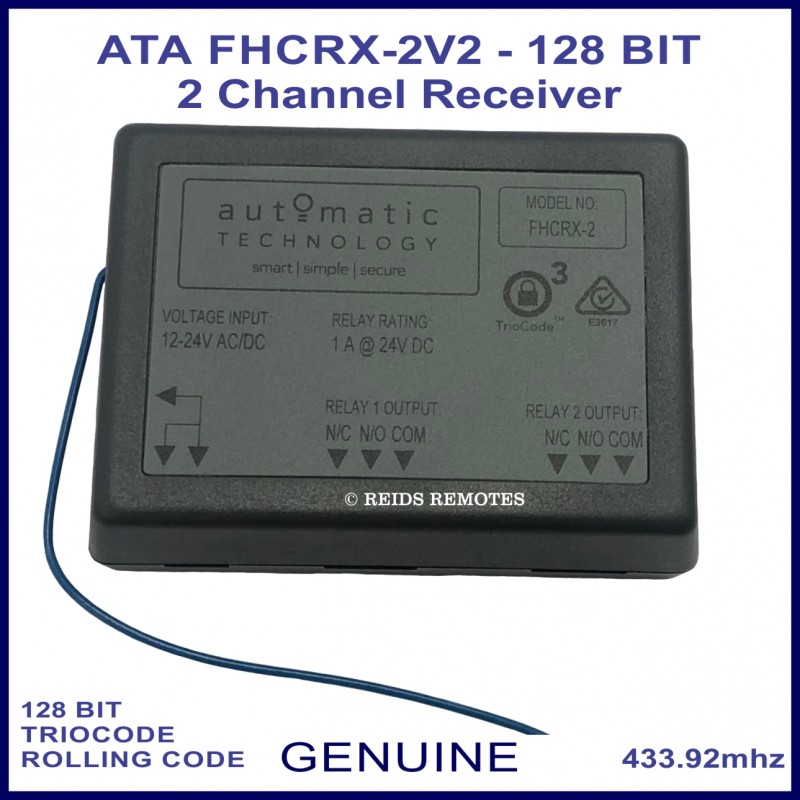

ATA FHCRX-2V2 TrioCode 128 bit 2 channel stand alone receiver

This 2 channel stand-alone receiver can work with many garage or gate control boards once connected a simple N/O & N/C 2 wire connection. It uses 128 Bit Tritran technology and so can be used with ATA 128 Bit Trio-Code remotes or B&D 128 Bit Trio-Code remotes but not at the same time. The receiver can only be set up to use one or the other brand. This is dictated by the first remote coded to the receiver.

There is a built in 12-24V ACDC connector so you can use most 1A 24V DC power supplies to power the unit id no power can be connected from the host device.

It is compatible with the following remotes:

It can operate between 9 V to 24 V.

The relays on the receiver can operate in a number of different modes:

PULSE MODE: The relay contact is active whilst the transmitter button is pressed

HOLD MODE: The relay changes state at each press of the transmitter button. So it would be Hold - Release - HOld etc similar ot an On/Off switch.

SPECIFICATION:

POWER sUPPLY: 12V - 24V AC OR DC

FEREQUENCY: MULTI FREQUENCY

MEMORY CAPACITY: 250 TRANSMITTERS

CONTROLLING OUTPUTS: 2 X NORMALLY OPEN & 2 NORMALLY CLOSED

ANTENNA LENGTH: 170MM

RELAY CONTACT RATING: 1 AMP @ 24 VOLTS DC

A coaxial antenna can also be connected to the receiver in difficult reception areas to improve reception.

If you are not certain that the remotes you have are compatible please feel free to email us a photo of the remotes and we will be more than happy to help you work out what options you have and what the simplest solution will be. The same applies to your gate control board. Feel free to send us a photo and we will advice is this card is compatible.

We offer a 12 Month Warranty on receivers in line with the manufacturer conditions, so you can buy your new receiver with full peace of mind and confidence that should there be a problem you are covered.

If you have any issues during programming please call us and we will try to talk you through it. We can also come and program your new remote anywhere across the Perth metro area just select Deliver and Program as your preferred delivery method at Checkout.
