Hyundai ILOAD - H1 - IMAX 2014-2020 95430-4H400 aftermarket remote flip key

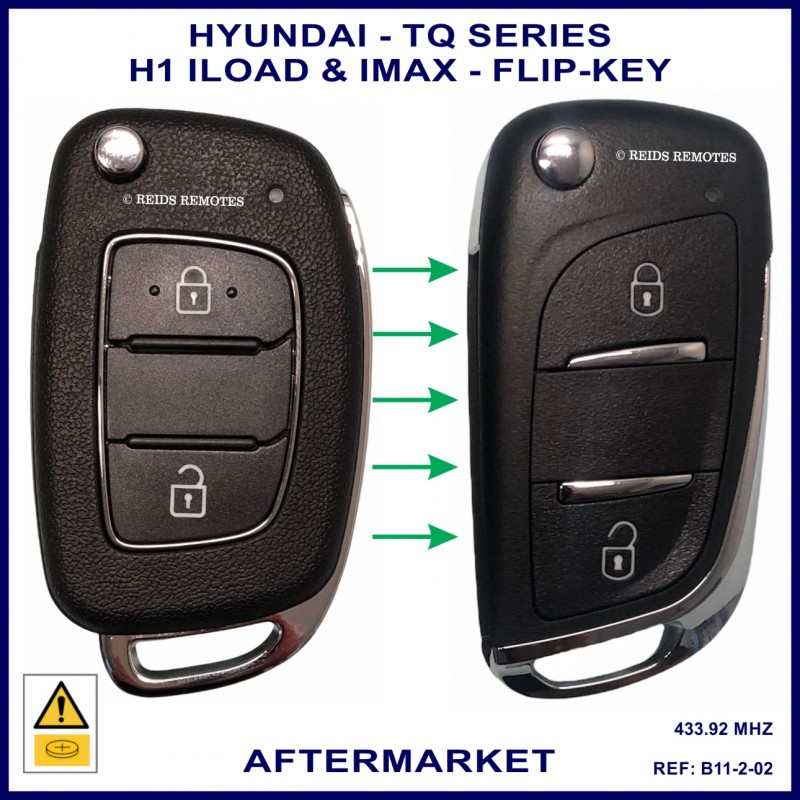

This stylish aftermarket 2 button flip key suits Hyundai ILOAD - IMAX & H1 TQ series van models from 2015 onward.

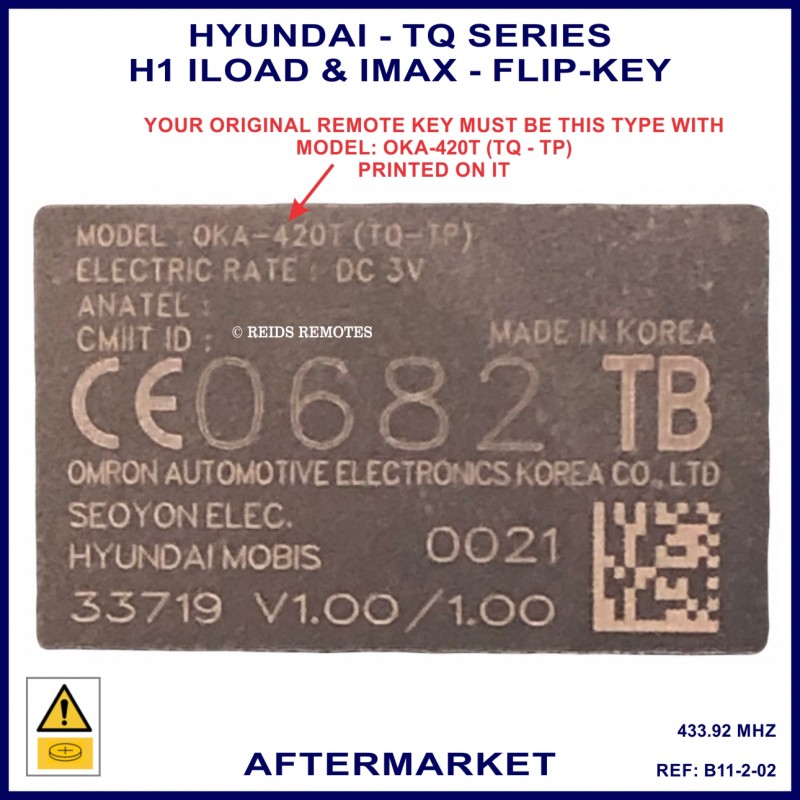

The part details on the original key is printed on the back and quite often it wears off or is just difficult to read because it is so small. You might find it easier to read if you use your phone camera to zoom in on it. The details you are looking for on the back of your key is:

MODEL: OKA-420T (TQ-TP)

The part number for the OEM key is is 95430-4H400 and the key has an ID46 HITAG2 PCF7936 transponder chip. The remote transmits on the 433 MHz FSK frequency for the Australian market.

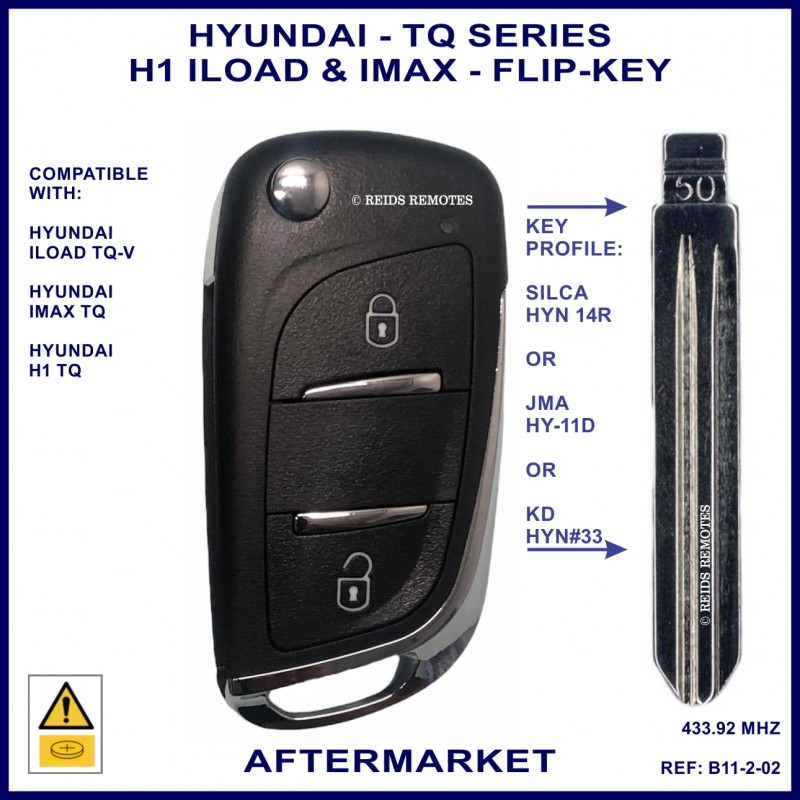

The key blade used on this vehicle matches the Silca HYN14R key profile.

OEM Hyundai flip keys are supplied without a key blade but this aftermarket flip key includes the key blade.

See photos for more information on what the key blade looks like.

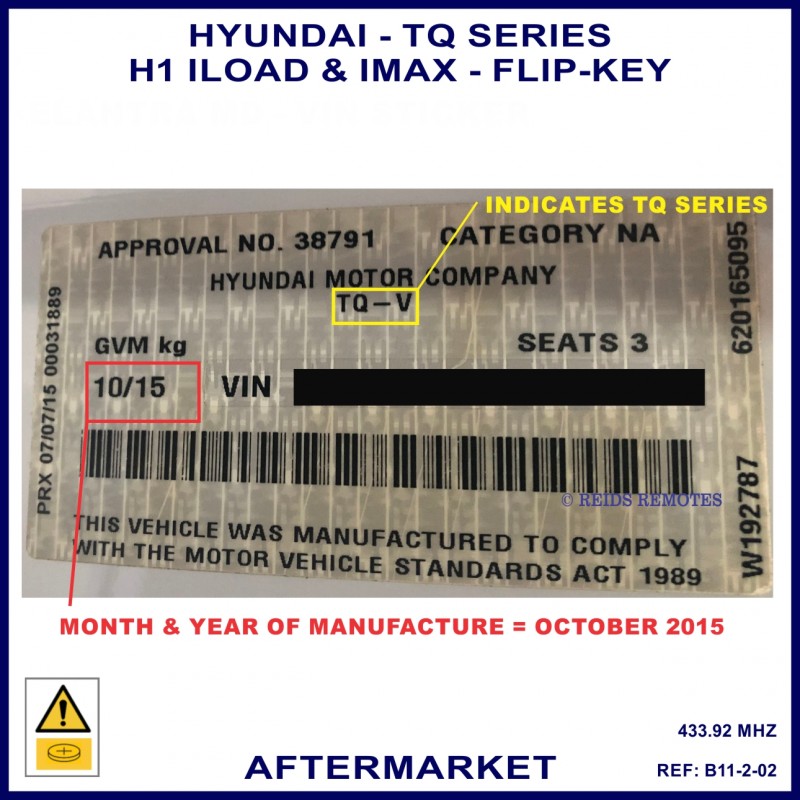

If you are not certain which key you need for your vehicle, please email us a photo of the VIN sticker from the door frame of your car. An example of what the sticker looks like is shown in the photos attached. From this we can advise what you need and which options you have from OEM or aftermarket.

We offer both this aftermarket flip key and the OEM flip key for this vehicle. See the details of the OEM remote flip key under Compatible Items.

This key will need to be cut and coded to your vehicle. This is a pretty straight forward process if you already have a working key but if you have lost your only key this process becomes much more complicated and expensive. It is always advisable to have a spare key, even if the key does not have the remote part as this will save you hundreds of dollars if you lose your flip key.

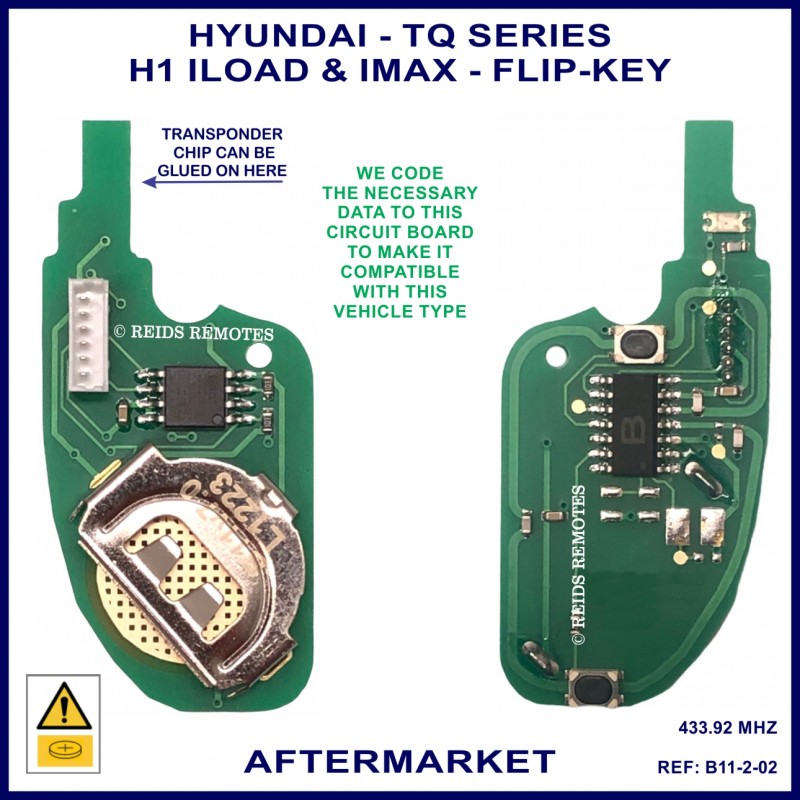

We can do this cut & code service for you at our workshop in East Victoria Park WA or you can have it done by a licensed locksmith close to where you live. The transponder chip and remote can only be coded using diagnostic equipment and so cannot by coded by the user themselves unless you have this specialist equipment.

If you plan to have this done locally please speak to your locksmith first as not all locksmiths will program a key if they have not supplied it.

WARNING! KEEP BATTERIES OUT OF REACH OF CHILDREN. Never allow children to replace button batteries on any device. Swallowing or placing a button cell battery inside any part of the body may lead to severe or fatal injuries in as little as 2 hours or less due to chemical burns and potential perforation of the oesophagus.

If you suspect your child has swallowed a button battery or placed inside any part of the body, immediately call the POISONS INFORMATION CENTRE on 13 11 26 for prompt advice. If your child is having any difficulty breathing, contact 000.

Dispose of used button/coin batteries immediately and safely. A battery can still be dangerous even when it can no longer operate the device. Place sticky tape around both sides of the battery and dispose of it immediately out of reach of children in an outside bin or recycle safely.

Please see button battery safety information from the Australian Competition & Consumer Commission (ACCC).
