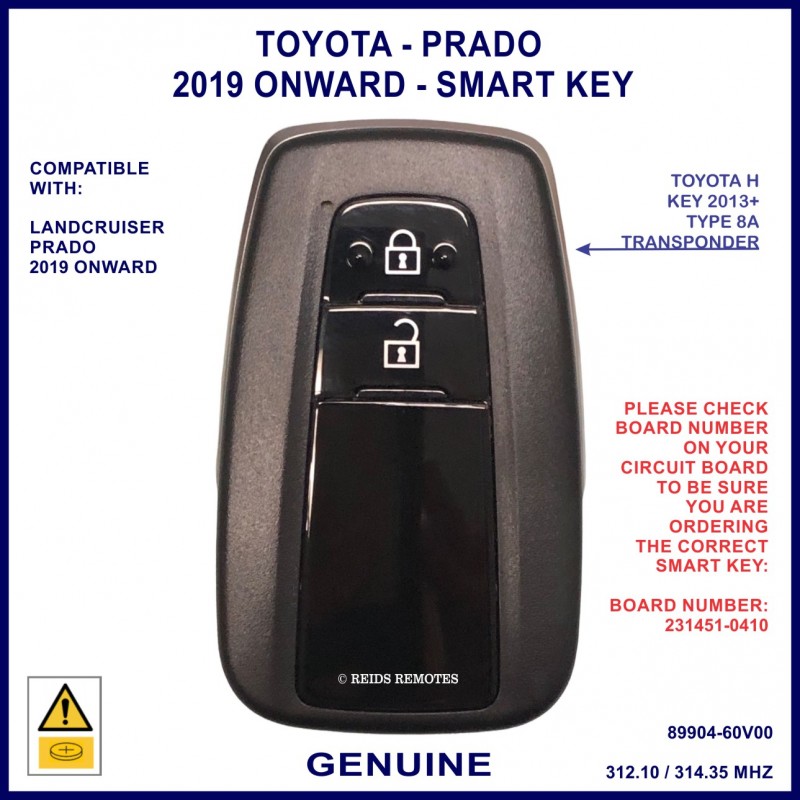

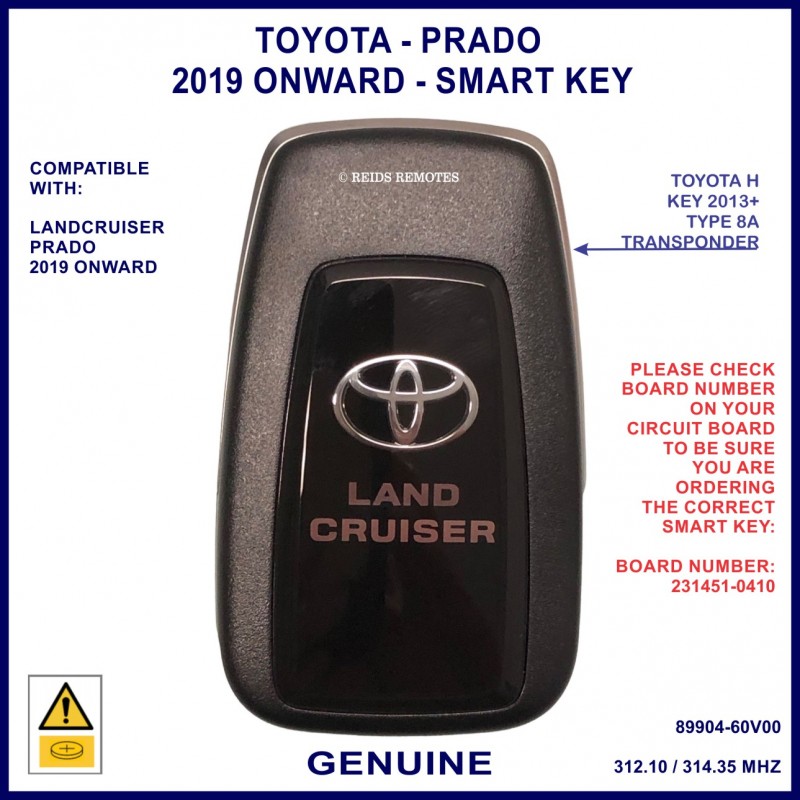

Toyota Landcruiser Prado 2 button 89904-60V00 genuine smart proximity key PCB 231451-0410

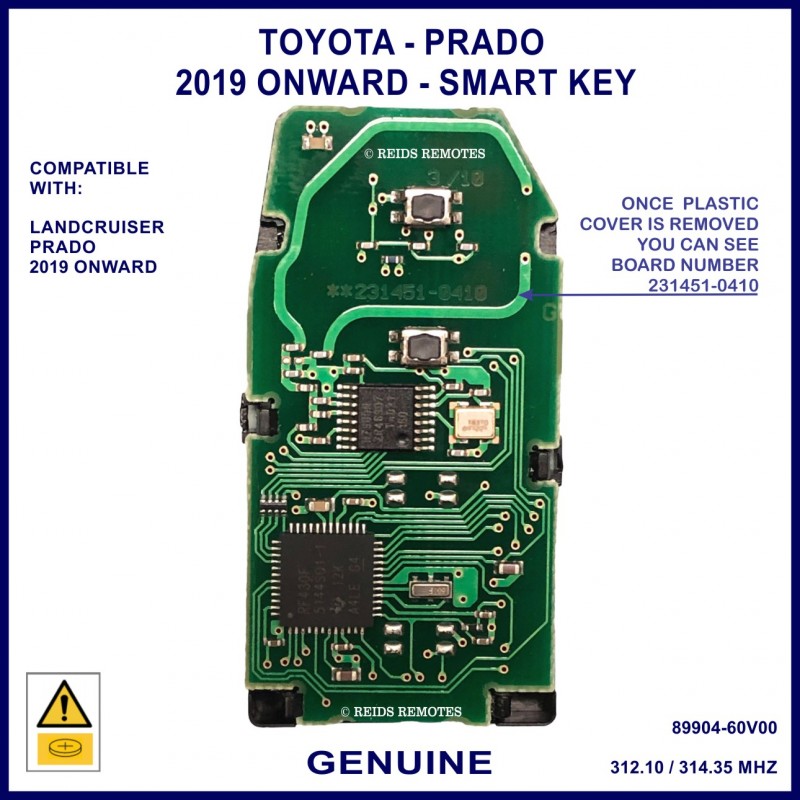

This new shape genuine Toyota 2 button smart key is designed for use with Landcruiser Prado models from 2019 onward which use the new 8A H-Chip and where the circuit board number is:

281451-0410

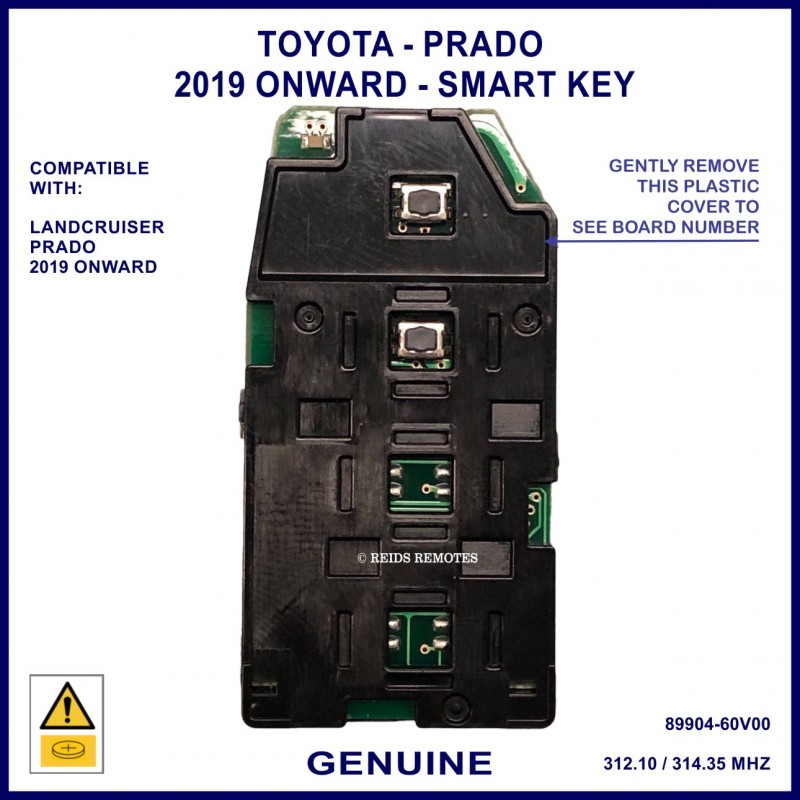

Check the photos for more information on where to find this detail to check.

If you are unsure you can email us a photo of the VIN sticker on your vehicle and we will assist you further from there.

This type of smart key is sometimes referred to as a proximity key or prox key as it allows you to start the vehicle without having to put it in a slot or put a key in the ignition.

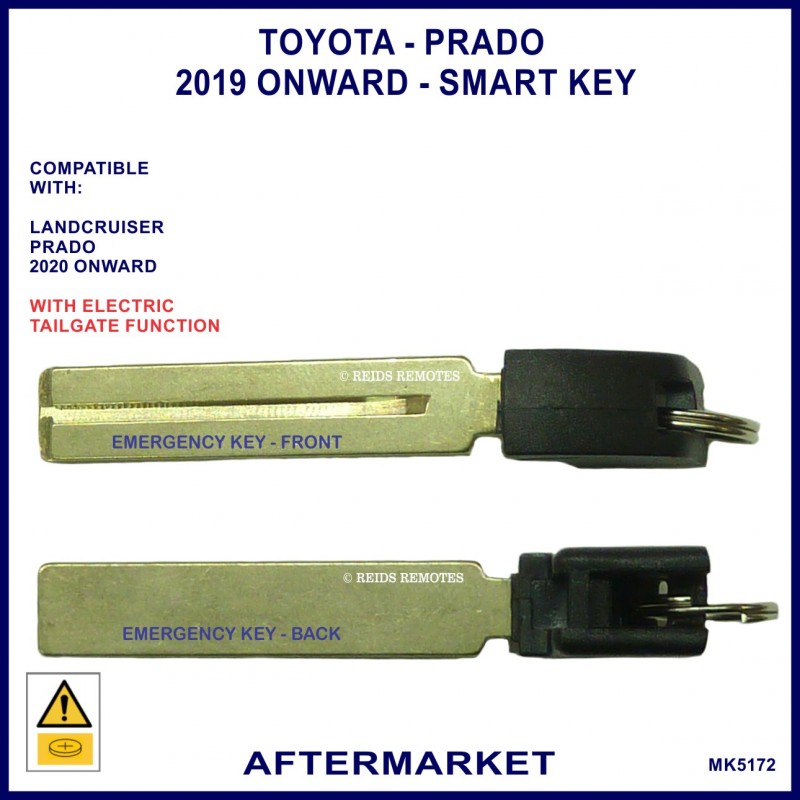

This OEM remote does not come with the emergency key included you can add one under Compatible items.

The remote function on this smart key uses dual frequency of 314.36 MHz and 312.10 MHz FSK.

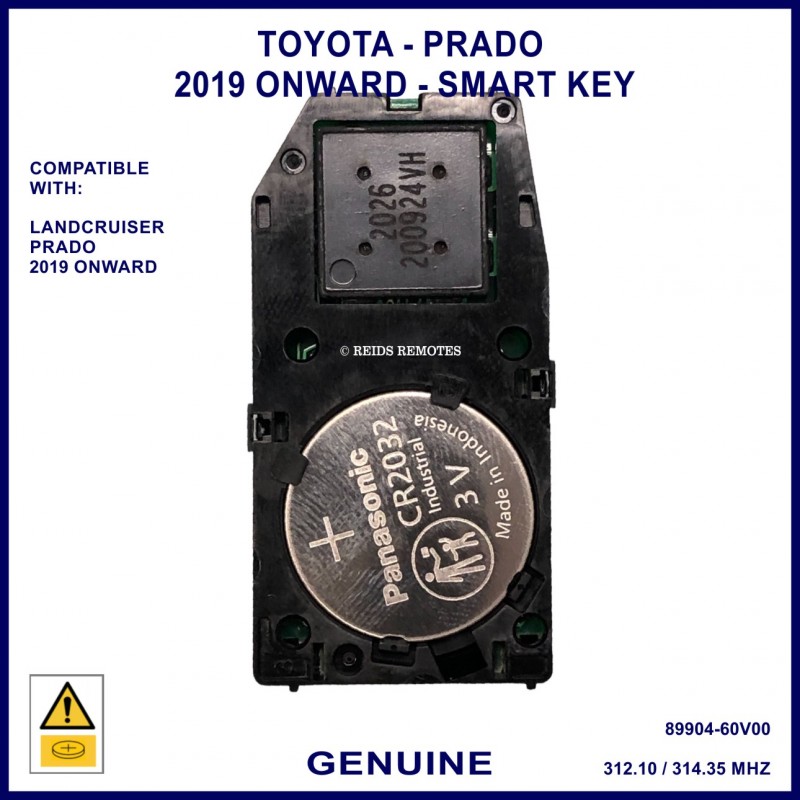

If the casing of your key is damaged you will see we sell a replacement case for this shape remote under Compatible Items, as well as spare batteries.

You will see examples of keys we have cut and coded attached to many of our products on this website. Even if your vehicle is not listed there is a very strong chance we can do you a spare key as we make over 2000 different keys and remotes.

This type of smart key can only be coded to your vehicle using specialist diagnostic tools by a licensed locksmith or vehicle repairer. We can code the smart key and cut your key in our shop in East Victoria Park WA or you can have it done locally to where you live.

Many Toyota models after 2018 require a special rolling code security pin code which changes every 30 minutes. This makes programming a spare key more difficult.

We charge $170 to code this type of smart proximity key which requires this special pin code and cut the key blade if we supply the proximity remote key.

We charge $90 to code this type of smart key and cut the key blade if we have supplied the remote and key and the vehicle does not need a rolling code security pin code.

You will need to call to make an appointment and we will need the vehicle for approx 45-60 minutes.

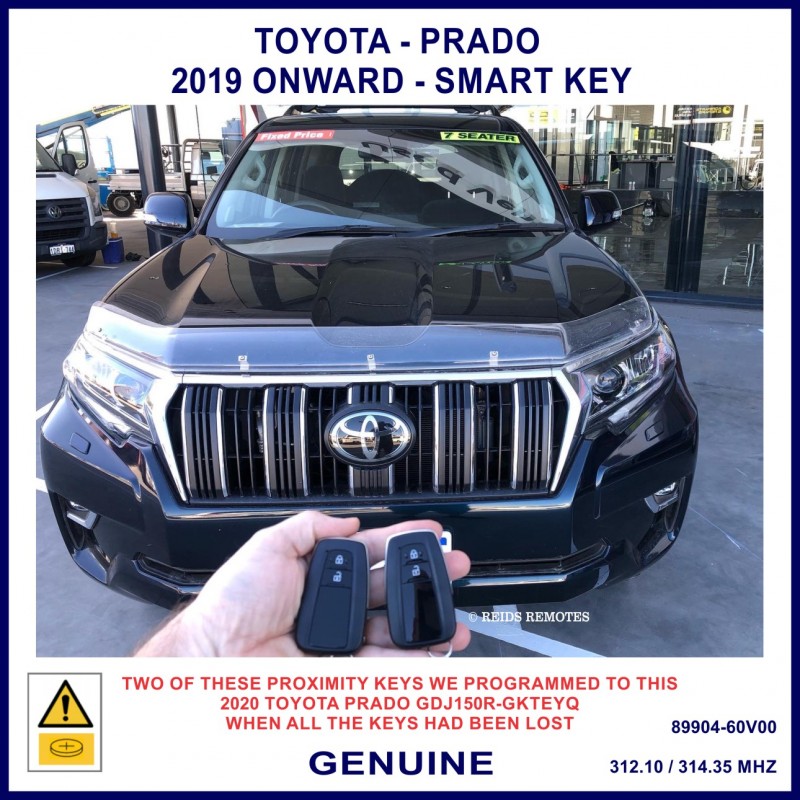

Coding and extra key when you have a working key is not a problem, however if you loose your only smart key, then the cost and complexity of the process escalate dramatically. We can program the keys when all keys are lost but only if the car is fairly local to us in East Victoria Park as we generally work from a workshop and do not offer a full mobile service.

It is not uncommon for customers to be charged up to $3600 by the dealer to resolve the issue when all keys are lost. Having a spare key for your Toyota is essential if you want to avoid a very large bill and the prospect of being without your vehicle for up to 3 weeks.

WARNING! KEEP BATTERIES OUT OF REACH OF CHILDREN. Never allow children to replace button batteries on any device. Swallowing or placing a button cell battery inside any part of the body may lead to severe or fatal injuries in as little as 2 hours or less due to chemical burns and potential perforation of the oesophagus.

If you suspect your child has swallowed a button battery or placed inside any part of the body, immediately call the POISONS INFORMATION CENTRE on 13 11 26 for prompt advice. If your child is having any difficulty breathing, contact 000.

Dispose of used button/coin batteries immediately and safely. A battery can still be dangerous even when it can no longer operate the device. Place sticky tape around both sides of the battery and dispose of it immediately out of reach of children in an outside bin or recycle safely.

Please see button battery safety information from the Australian Competition & Consumer Commission (ACCC).

GEN REF: 89904-60V00-35445

GEN EB REF: 69515-47030

MK REF: MK4990-18692
