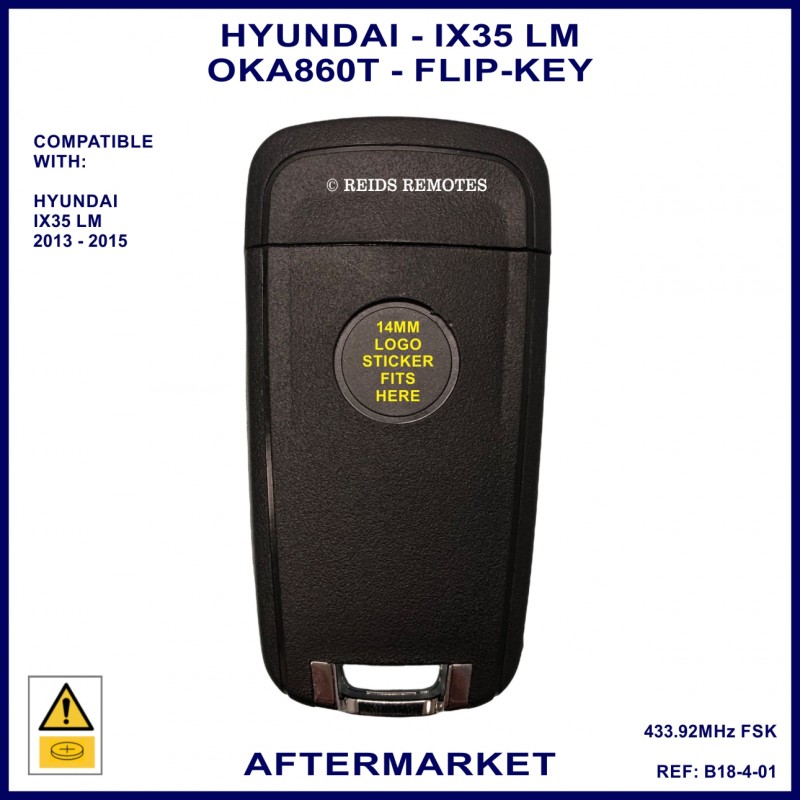

Hyundai ix35 2013-2015 aftermarket 95430-2S700 4 button remote flip key

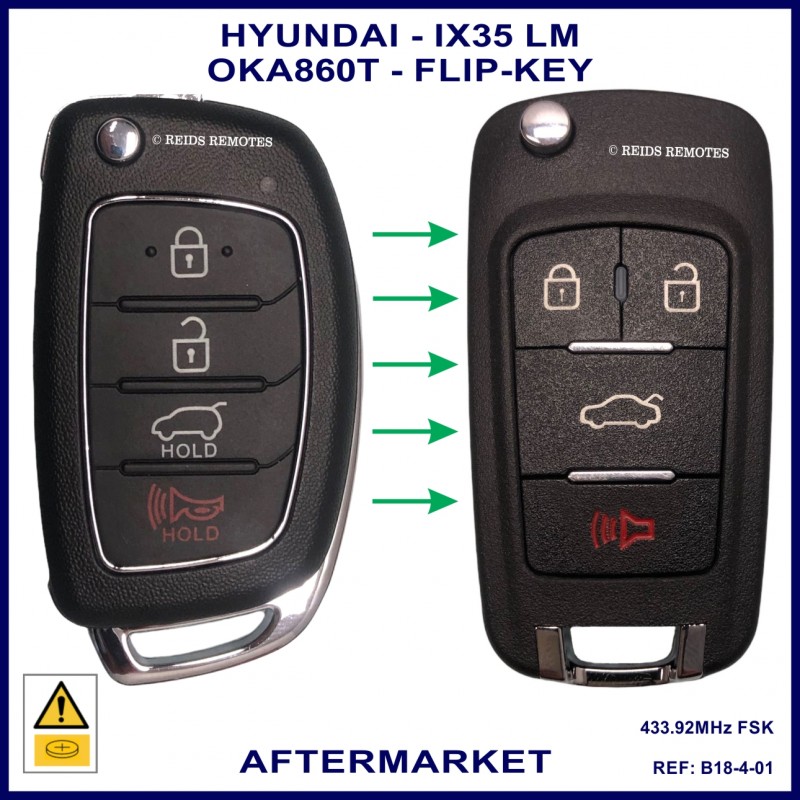

This stylish 4 button flip key can be used with Hyundai IX35 models from 2013 to 2015 where the original key part number is 95430-2S700 and the original key is a 4 button like the one on the left of the main photo.

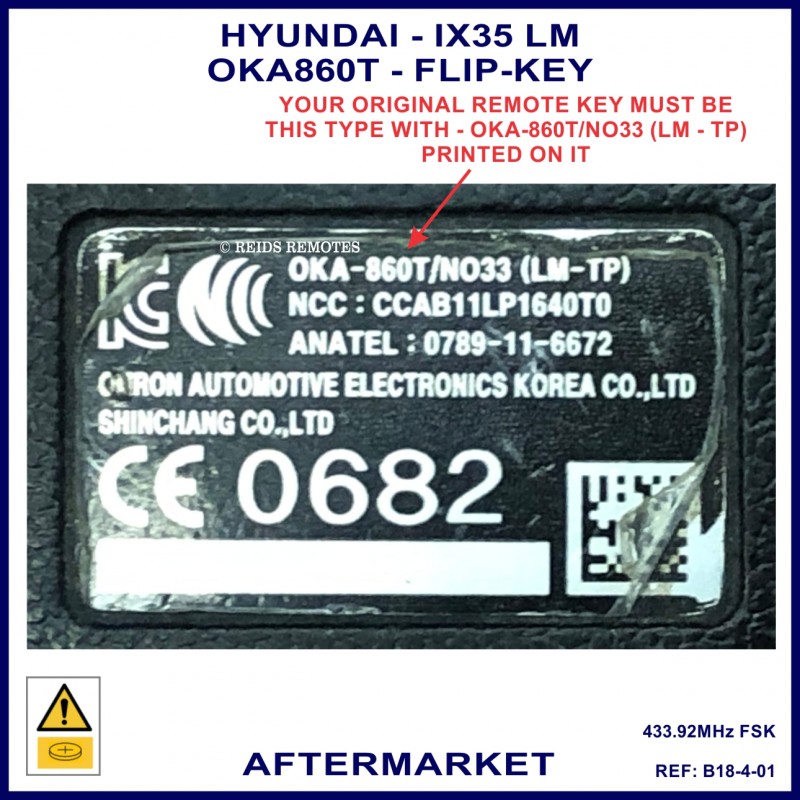

The parts details on the original key is printed on the back and quite often it wears off or is just difficult to read because it is so small. You might find it easier to read if you use your phone camera to zoom in on it. The details you are looking for on the back of your key is:

OKA-860T/NO33 (LM-TP)

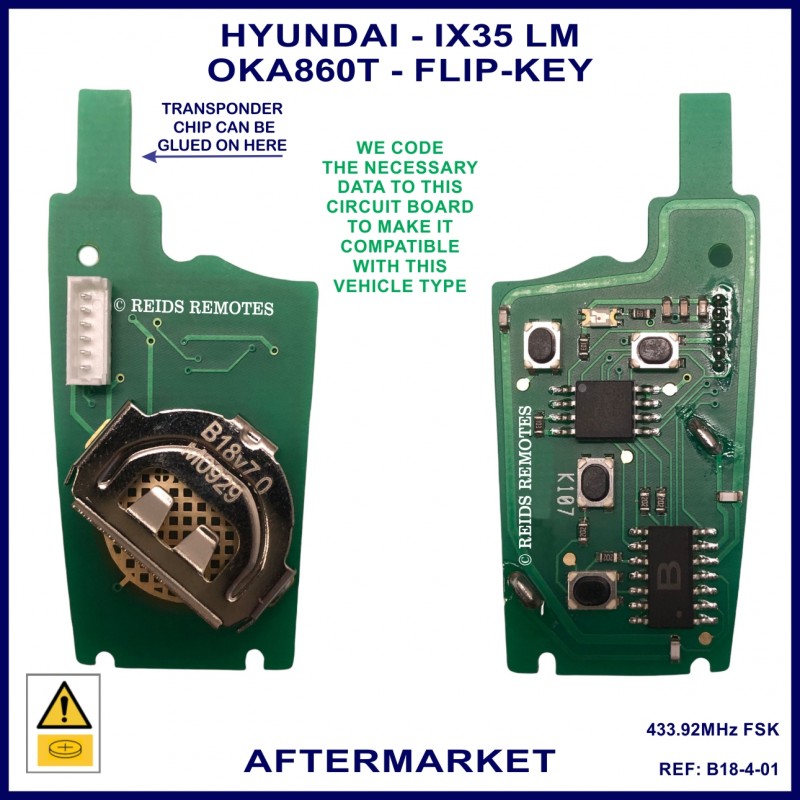

The Hyundai part number can be 95430-2S700 or 95430-2S701 and the key has an ID46 HITAG2 PCF7936 transponder chip. The remote transmits on the 433 MHz FSK frequency for the Australian market.

The Hyundai IX35 LM series can take a maximum of 2 remote controls and a maximum of 4 transponder chips programmed to the vehicle. All remotes and transponders are first deleted and then re-programmed to the vehicle in the programming procedure.

The key blade used on this vehicle matches the Silca KIA7 OR JMA HY-18 key profile. See photos for more information on what the key blade looks like.

The flip remote is supplied with a key blade included, unlike OEM Hyundai parts which do not include a key blade.

PLEASE NOTE SOME IX35 LM MODELS CAME WITH A 3 BUTTON FLIP KEY WHICH DOES NOT HAVE THE RED PANIC BUTTON AND MODEL REFERENCE OKA-865T ON THE BACK - WE ALSO DO AN AFTERMARKET VERSION OF THOSE KEYS. THIS FLIP KEY WILL NOT WORK ON THOSE MODELS AS THE REMOTE CODING IS DIFFERENT

If you are not certain which key you need for your vehicle, please email us a photo of the VIN sticker from the door frame of your car. An example of what the sticker looks like is shown in the photos attached. From this we can advise what you need and which options you have from OEM or aftermarket.

We can make up this aftermarket flip key in a few different styles. Please ask for more information.

This key will need to be cut and coded to your vehicle. This is a pretty straight forward process if you already have a working key but if you have lost your only key this process becomes more complicated and expensive. It is always advisable to have a spare key, even if the key does not have the remote part as this will save you hundreds of dollars if you lose your flip key.

We can do this cut & code service for you at our shop in East Victoria Park WA or you can have it done by a licensed locksmith close to where you live. The transponder chip and remote can only be coded using diagnostic equipment and so cannot by coded by the user themselves unless you have this specialist equipment.

WARNING! KEEP BATTERIES OUT OF REACH OF CHILDREN. Never allow children to replace button batteries on any device. Swallowing or placing a button cell battery inside any part of the body may lead to severe or fatal injuries in as little as 2 hours or less due to chemical burns and potential perforation of the oesophagus.

If you suspect your child has swallowed a button battery or placed inside any part of the body, immediately call the POISONS INFORMATION CENTRE on 13 11 26 for prompt advice. If your child is having any difficulty breathing, contact 000.

Dispose of used button/coin batteries immediately and safely. A battery can still be dangerous even when it can no longer operate the device. Place sticky tape around both sides of the battery and dispose of it immediately out of reach of children in an outside bin or recycle safely.

Please see button battery safety information from the Australian Competition & Consumer Commission (ACCC).
