SK-CG-3B+1 (A16 - DIAG)
New product

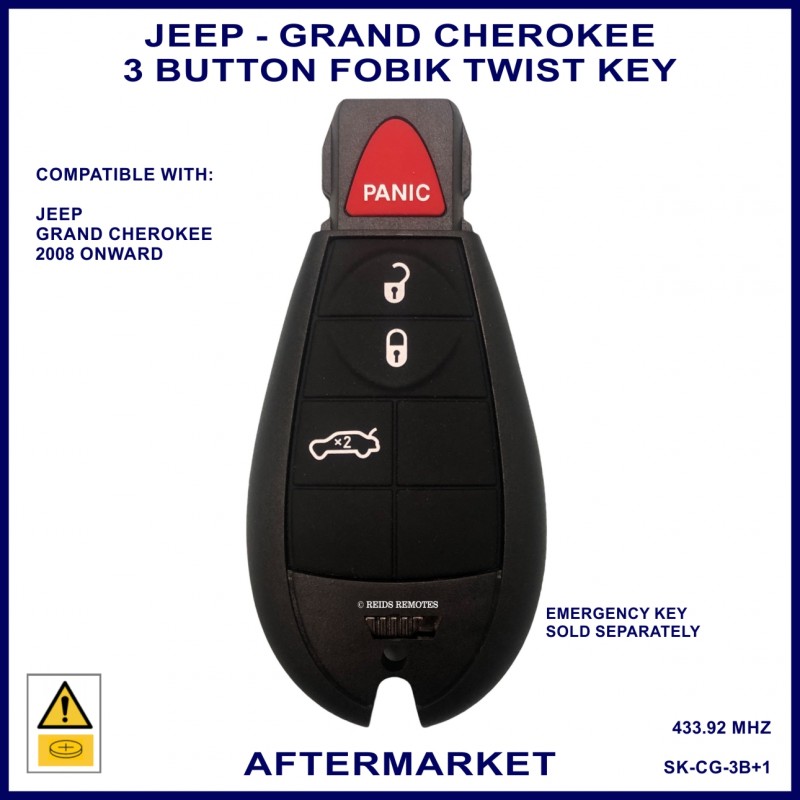

This non genuine 3 button fobik twist key can be used with a number of Jeep Cherokee models.
This is a non proximity key and must be placed in the slot in dash to start the vehicle.
THIS REMOTE KEY MUST BE CODED USING DIAGNOSTIC EQUIPMENT - ADDITIONAL FEES APPLY
A16 - DIAG
Warning: Last items in stock!
Availability date:
This style of key is known as a fobik twist key.

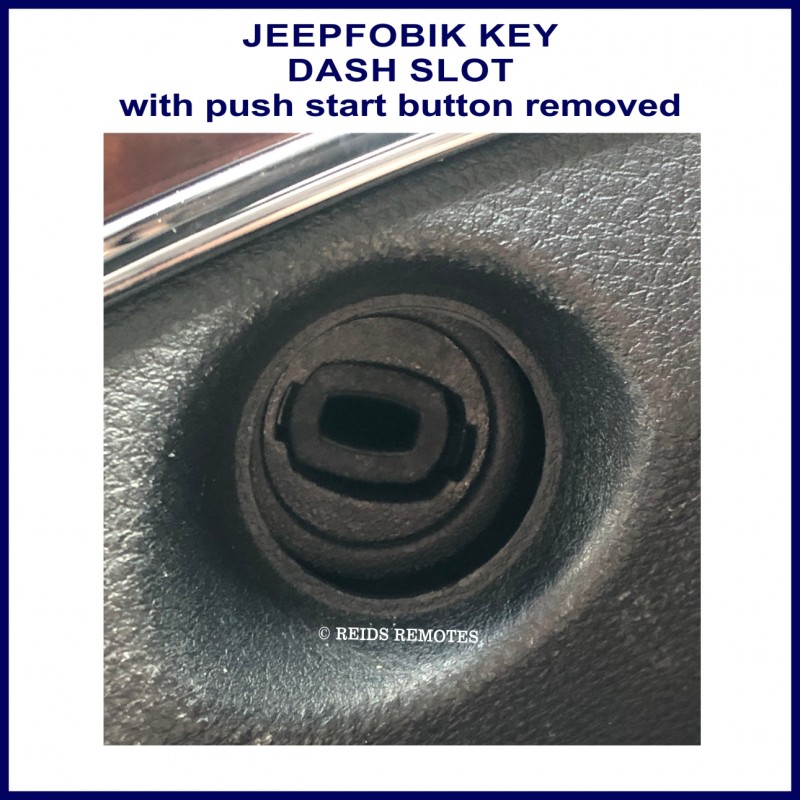

This type key will NOT work with the push button start function. To use the fobik twist key you must pull off the push button start button and you will see the slot where the key must be placed to turn the ignition on.
Push button start requires a full proxomity fobik key not a fobik twist key!
It is described as a 2 button even though it also has the red PANIC button. It does not matter if your original key has this panic button or not as long as it matches the other features of this one.
This key has a LOCK, UNLOCK & BOOT buttons.

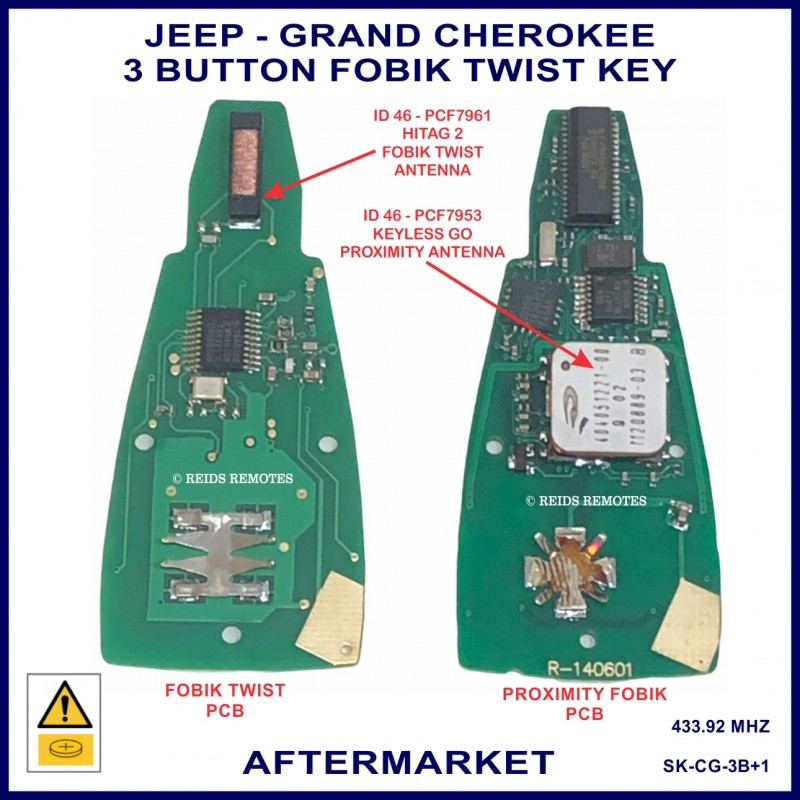

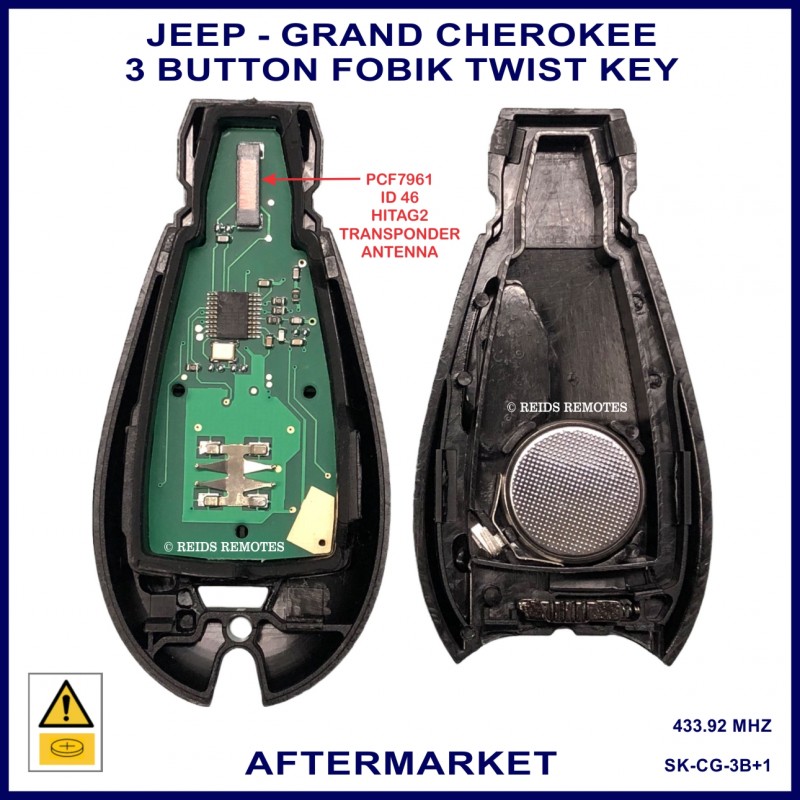

The key uses an ID46 Phillips-Crypto Hitag 2 transponder chip (PCF7961) - this chip can also be referred to as a TP12-PCF7961.
THIS KEY IS NOT COMPATIBLE WITH THE JEEP CHEROKEE OR JEEP CHEROKEE SPORT AS THAT KEY USES AN ID4A HITAG-AES PCF7961M TRANSPONDER CHIP.
If you are not certain which chip is in your key we can scan it in our shop to confirm.
The emergency key blade is sold seperately - please see compatible items.
The remote comes with a battery already fitted. The remote transmits on 433.92 MHz.
This remote key can be used with the following vehicles:
VEHICLE | YEAR FROM | YEAR TO |
JEEP GRAND CHEROKEE | 2008 | ONWARD |
This table is intended as a guide only and you may find that your vehicle is not listed above but you are using a similar looking remote key. Feel free to send us the details of your vehicle (YEAR - MAKE - MODEL) and some photos of your key and we will happily assist you to select a compatible spare.

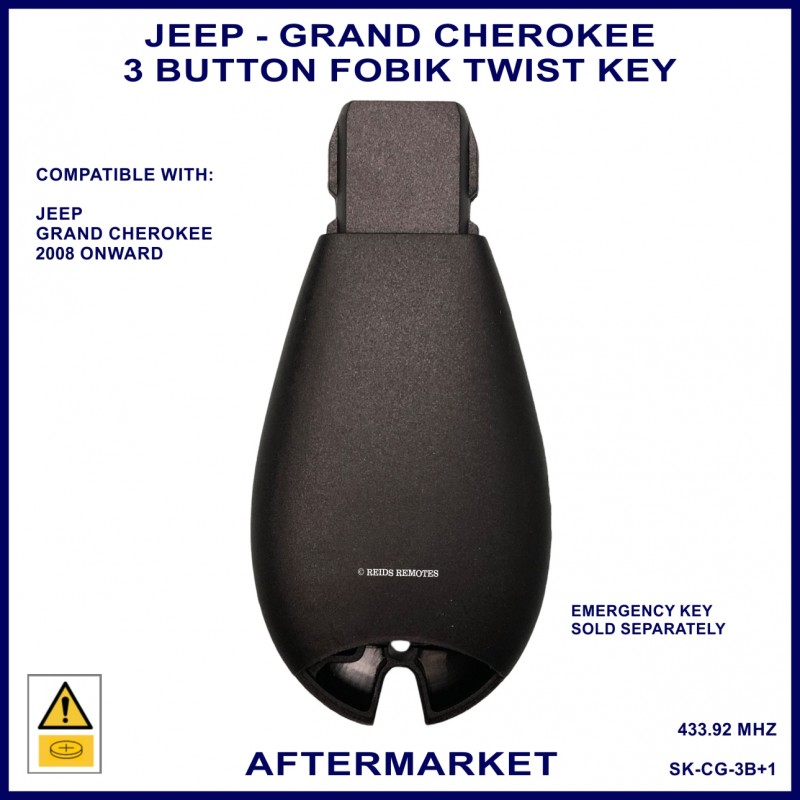

As this is a non-genuine part there is no logo on the back of the remote case. This fobik remote key can also be used with some Chrysler & Dodge models also.
This remote and transponder chip can only be coded to the vehicle using special diagnostic equipment by a licensed repairer or locksmith. We can do this in store for you or you can have it done locally where you live.
Please call us on (08) 6110 2693 and make an appointment if you wish us to do the coding. We will generally need the vehicle for around 30-40 minutes max.
SG REF: SK-CG-3B+1-03290
WARNING! KEEP BATTERIES OUT OF REACH OF CHILDREN. Never allow children to replace button batteries on any device. Swallowing or placing a button cell battery inside any part of the body may lead to severe or fatal injuries in as little as 2 hours or less due to chemical burns and potential perforation of the oesophagus.
If you suspect your child has swallowed a button battery or placed inside any part of the body, immediately call the POISONS INFORMATION CENTRE on 13 11 26 for prompt advice. If your child is having any difficulty breathing, contact 000.
Dispose of used button/coin batteries immediately and safely. A battery can still be dangerous even when it can no longer operate the device. Place sticky tape around both sides of the battery and dispose of it immediately out of reach of children in an outside bin or recycle safely.
Please see button battery safety information from the Australian Competition & Consumer Commission (ACCC).
Frequency | 433.92 MHz |
No. of Buttons | 2 BUTTONS + PANIC BUTTON |
Shell Colour | BLACK |
Button Colour | BLACK |
Remote Programming Method | DIAGNOSTIC TOOLS REQUIRED |
Encryption Type | ROLLING CODE |
Transponder Programming Method | DIAGNOSTIC TOOLS REQUIRED |
Dimensions in mm (L x W x D) | 82 x 40 x 15 |
Battery Type | CR2032 - 3V |
LED Color | NO LED |
CR2032 is a 3 Volt battery and measures 20 mm x 20 mm x 3.2 mm Remote controls for garage doors, swing & sliding gates, home security systems, car alarms, central locking systems use lithium batteries. It is vital to select the correct battery both for fit and function of the device. One of, if not the most reliable lithium battery on the market is...
This emergency key is used in a large number fobik type keys used with Jeep, Chrysler & Dodge vehicles as listed below. This key blade fits inside the Fobik remote and is on the Silca CY24 - JMA CHR-15 key profile. A16
This service is to cut and program a key we are supplying to your vehicle. We do this for you at our workshop in East Victoria Park W.A. THE VEHICLE MUST BE HERE FOR US TO DO THIS SERVICE - IF YOU DO NOT LIVE IN PERTH YOU CAN PURCHASE A KEY OR REMOTE FROM US AND HAVE IT PROGRAMMED LOCALLY WHERE YOU LIVE
