Mercedes & Renault compatible 2 leg surface mount tactile micro-switch 3.8mm X 6mm X 2.6mm

This particular tactile micro-switch is used on a number or PCBs used in keys or remotes on Mercedes and Renault vehicles.

This switch is described as a 2 leg surface mount switch and measures 3.8mm X 6mm X 2.6mm  (WIDTH X LENGTH X HEIGHT)

Please note the measurement of 6 mm in length only relates to the body of the micro switch and does not include the leg that extends on both ends of the body.

The height of 2.6mm includes the body of the switch and the tactile button on top.

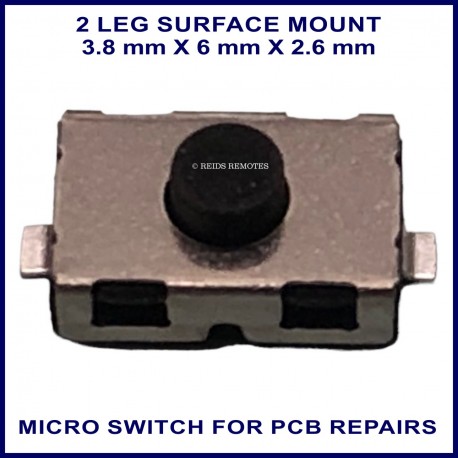

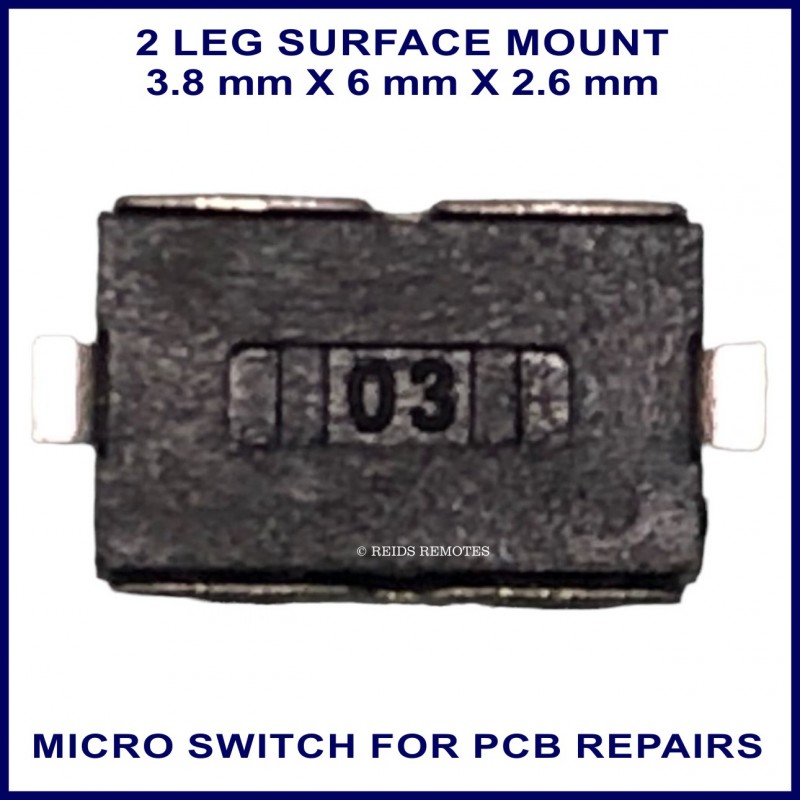

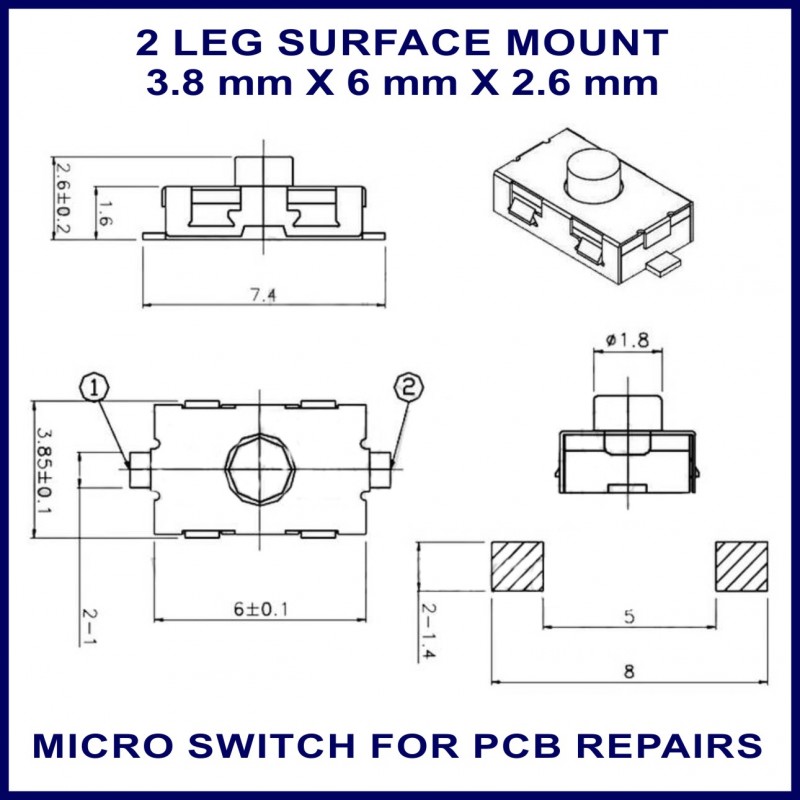

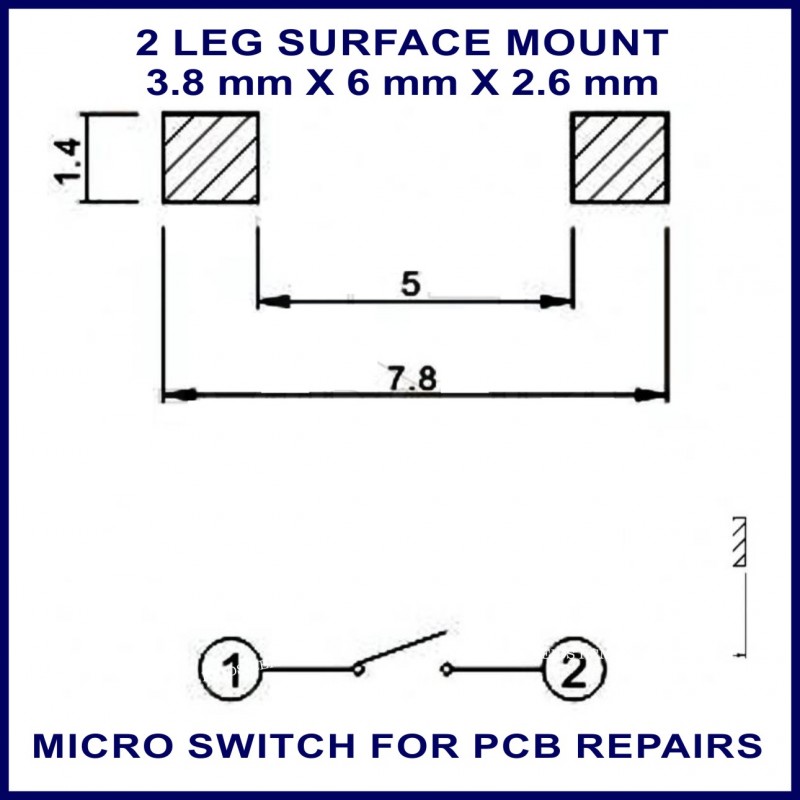

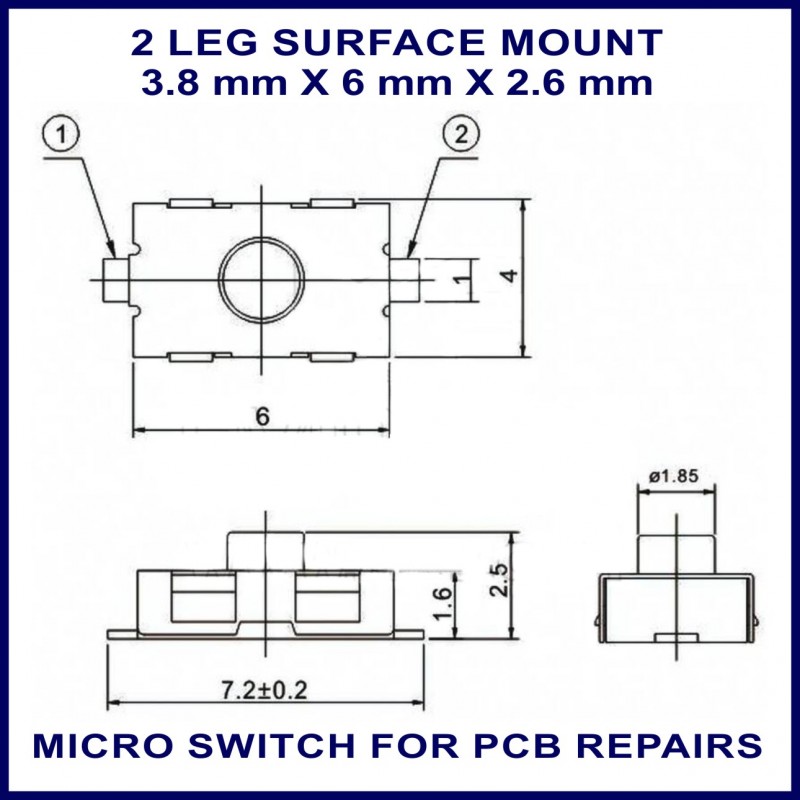

The images attached should help to explain all of the dimensions of the switch and its parts.

It is important to note that you should carefully check the sizes of the switch on your board before placing an order.

Replacing a micro-switch on any lightweight PCB should only be attempted by trained professionals as overheating the PCB can cause damage to other components on the circuit.

We repair all sorts of PCB's from car keys, central locking remotes and garage or gate remotes every day at our East Victoria Park workshop. We use a very exact temperature controlled soldering re-work station to reduce the risk of any damage to the circuit board.

We stock over 30 different sizes of micro switch to cover most common keys and remote controls but there may be others that we simply do not have.
