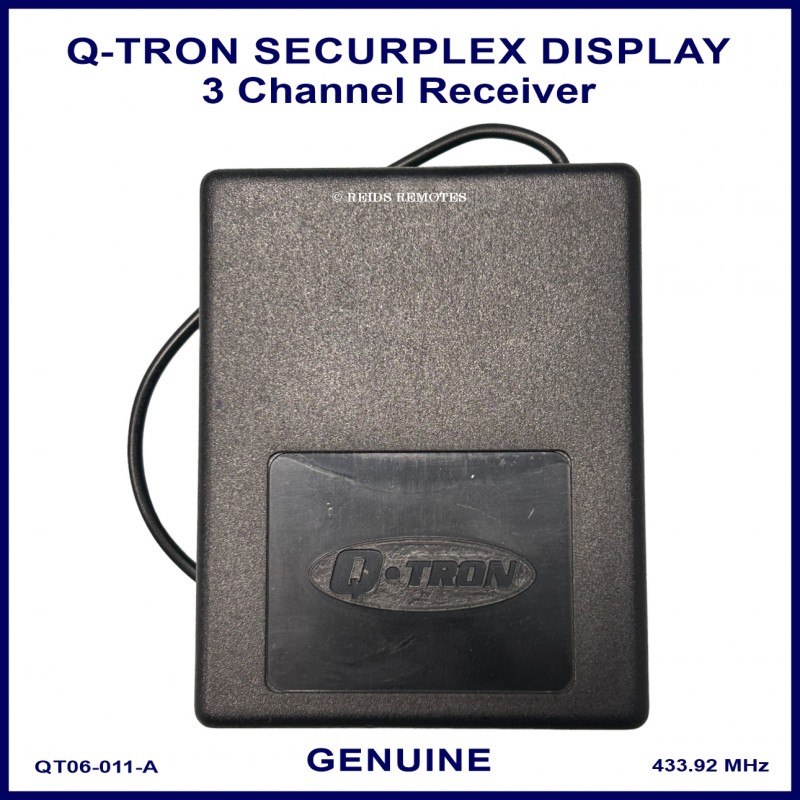

Q-Tron Securplex Display 433 MHz 3 channel extended range receiver unit

This compact 3 channel receiver unit made by Q-Tron has an extended range and can be used in either Pulse or Latch mode.

The unit can use 12v DC or 24v AC/DV power supply

The memory in this receiver can store up to 999 different transmitter codes.

SPECS: 12V MODE:

12V DC input only

Voltage Limits: (Min 11V - Max 15V(DC)

SPECS: 24V MODE:

24v AC/DC input

Voltage Limits: (Min 14V - Max 28V (AC)
Voltage Limits: (Min 16V - Max 30V (DC)

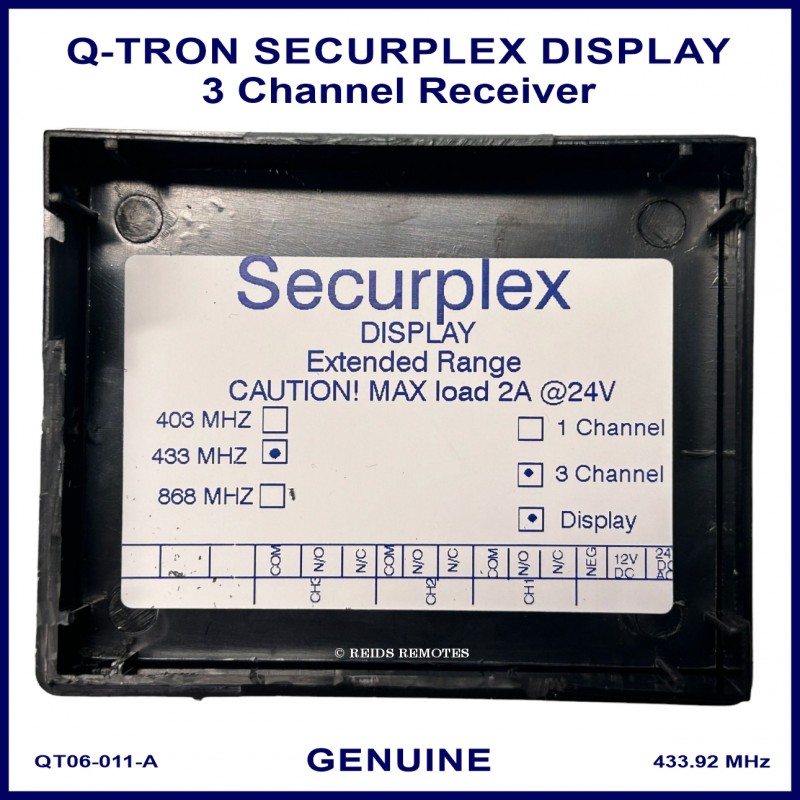

Relay Contact Current: Max 2A

The receiver is suppl;ied with an instruction sheet to add or delete transmitters and instruction on how to set the mode to Pulse or Latch modes.

When storing 3 or 4 button remote transmitter on this 3 channel receiver, the receiver will automatically assign the first 3 buttons of the remote to channels 1, 2 & 3 in order. This order cannot be changed. If using a 1 button remote transmitter on this receiverer the button will again automatically be assigned to channel 1.

When storing remote transmitters to this receiver each transmitter will be allocated a memory position and you should name a note of this on the transmitter with a tag or engraver as this will allow you to later delete that specific transmitter should it be lost or damaged.

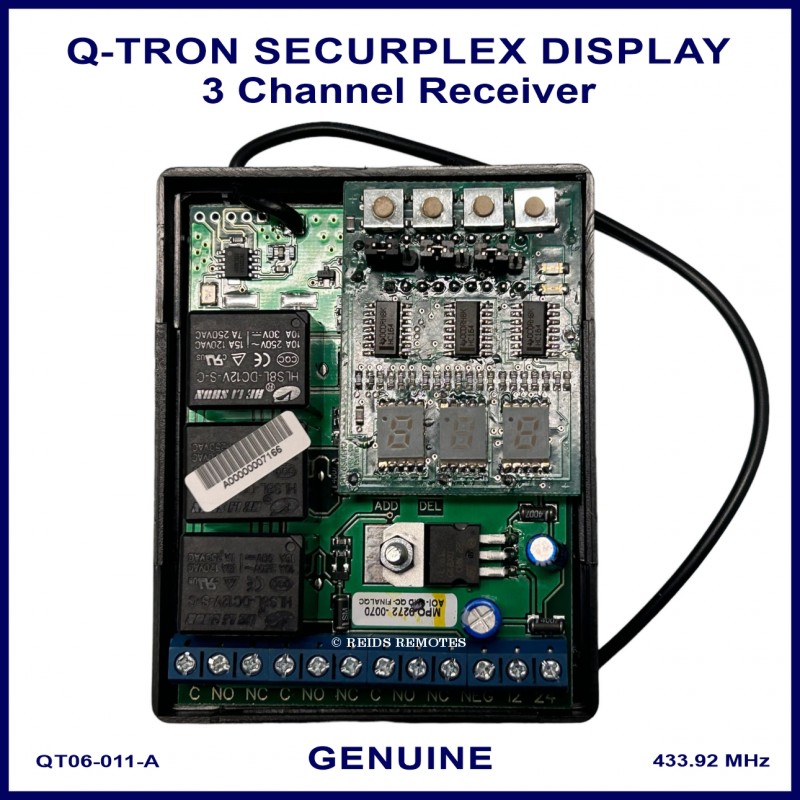

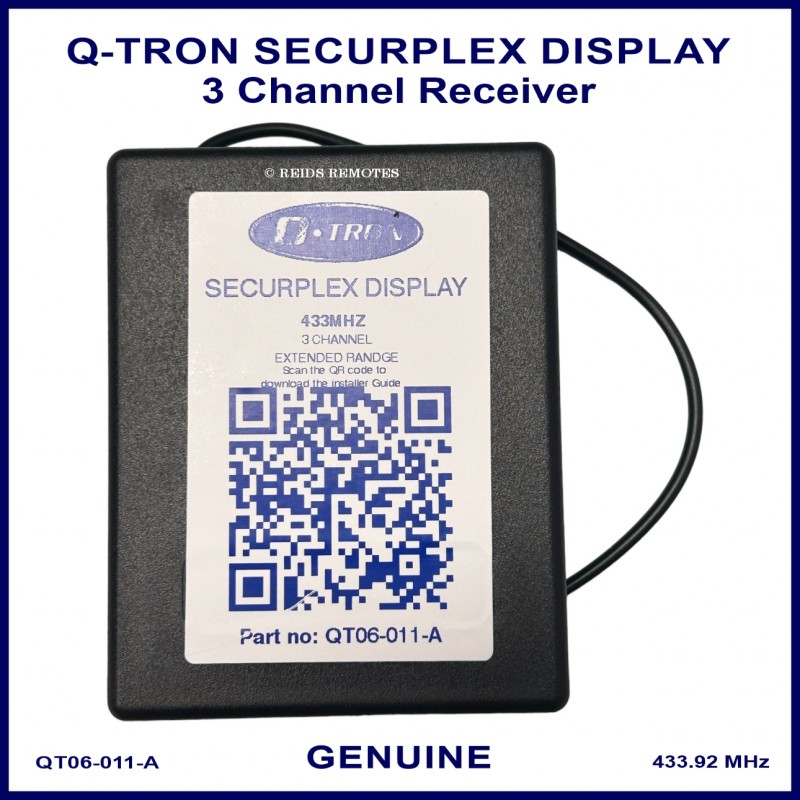

The instructions to install and program this receiver which can be dowloaded from the QR code sticker on the front are easy to follow and explain how to navigate the menue using the buttons and jumper pins on the main board.

If you have any questions please feel free to email us before making your purchase.
