Airkey AKRX62-P AGM plug in 2 relay output receiver for A series remotes

This 6 pin plug in receiver made by AIRKEY suits the #A series of Airkey AGM AUTOMATION remotes. It is compact and has a large memory capacity with 340 memory slot capacity.

This receiver is designed for electric gate control boards which have a 6 pin connector for a receiver card.

THE POWER MUST BE SWITCHED OFF WHEN YOU ARE FITTING THIS RECEIVER CARD TO THE GATE CONTROL BOARD

Specifications:
6 button input / 2 channel output
340 slot memory capacity
Compatible with Airkey Programmer & Airkey Manager
Operates with 2,4 & 6 button Airkey transmitters with #N serial numbers
Remote receiver learning functions
Plugs into common 6 pin gate controller connector with 12V DC supply

Remote learning header:
Remote learning is disabled by removing the 5 pin header
The header MUST be removed before connecting an Airkey Programmer or Airkey Manager or before
using the manual ADD or CLR buttons on the receiver

Clearing Receiver:
To clear ALL remotes, hold the CLR button until the Rc/OK LED turns on (Approx 5 sec)

Learning Airkeys directly ino Receiver:
To learn remotes directly into the receiver, hold ADD button** and press a button on each remote
in turn - Rx/OK LED will flash off as each remote is learned.
**Alternatively install link between pins 2 & 3 of ICSP header to learn a large batch of remotes

Remote learning:
The 5 pin header must be plugged into the ICSP header with pin 1 (bevel) towards
the centre of the receiver board (see main photo) to enable remote learning.

The header should be installed with the power off.
Alternatively, the header may be installed while the ADD button is held down.

Once header is in place you will need a learned remote that already operates the device.
Take that learned remote and press  buttons 1 & 2 together to activate learning mode.
Now press a button on the new remote within 3 seconds to learn it to the receiver.
N.B. Remote learning does not operate if using DURESS mode

CARE SHOULD BE TAKEN IF MORE THAN 1 RECEIVER ARE WITHIN RANGE AS THE REMOTE LEARNING FUNCTION WILL OPERATE SIMULTANEOUSLY ON ALL RECEIVERS IN RANGE.

Minimum antenna:
Use 160mm length of 21AWG wire (Approx. 0.5mm)
For optimum reception the antenna should be straight, vertical and clear of any metalic objects.

Button relay Selections:
Various button & output combinations can be selected by insterting links at positions L1/L2/L3/L4/L5/2CH
following the descriptions in the selection table which is supplied with the receiver.

When following the Function selection Table please note that a 1 = closed or bridged link & 0 = open link

The OUTPUTS can be set to:
Momentary Pulse,
Hold Output

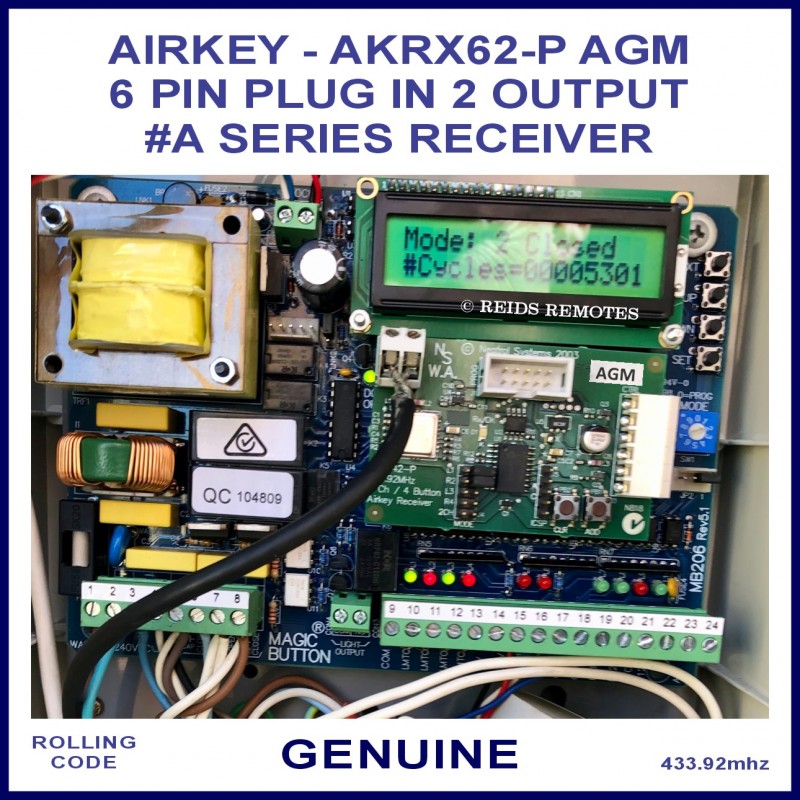

This receiver card is compact in size and has a detachable section on the left which helps when mounting them to the OLDER Elsema type controllers but can be removed if necessary when the card is inserted to more modern gate controls such as the Magic Button MB206 electric gate control board.
