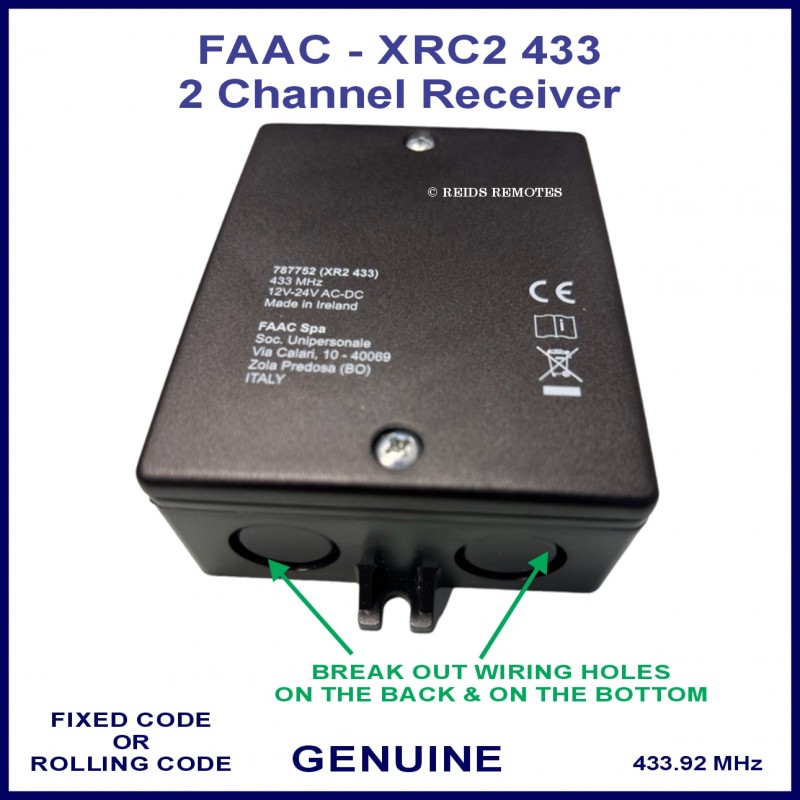

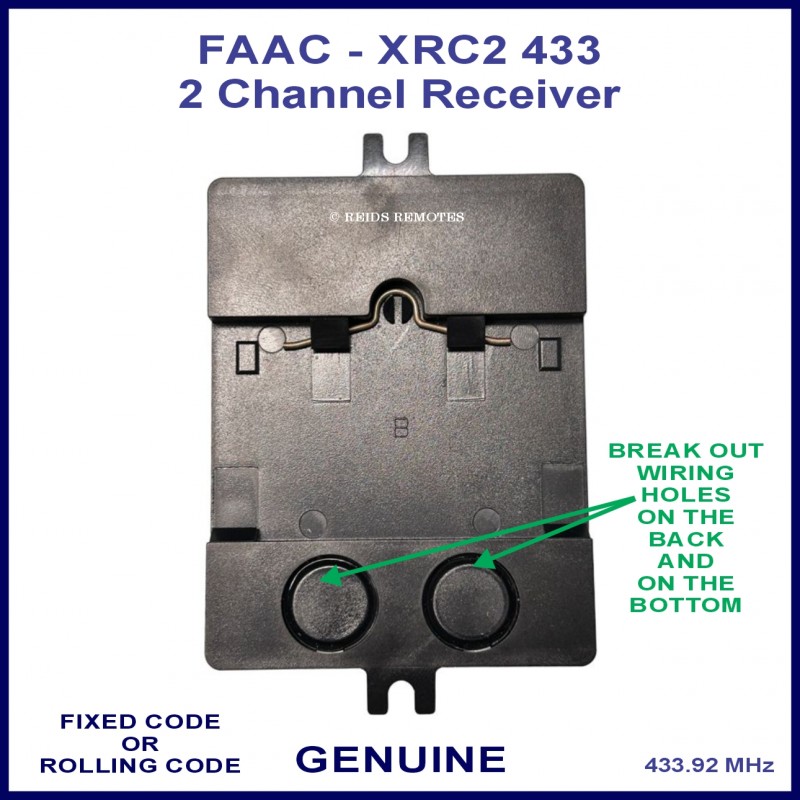

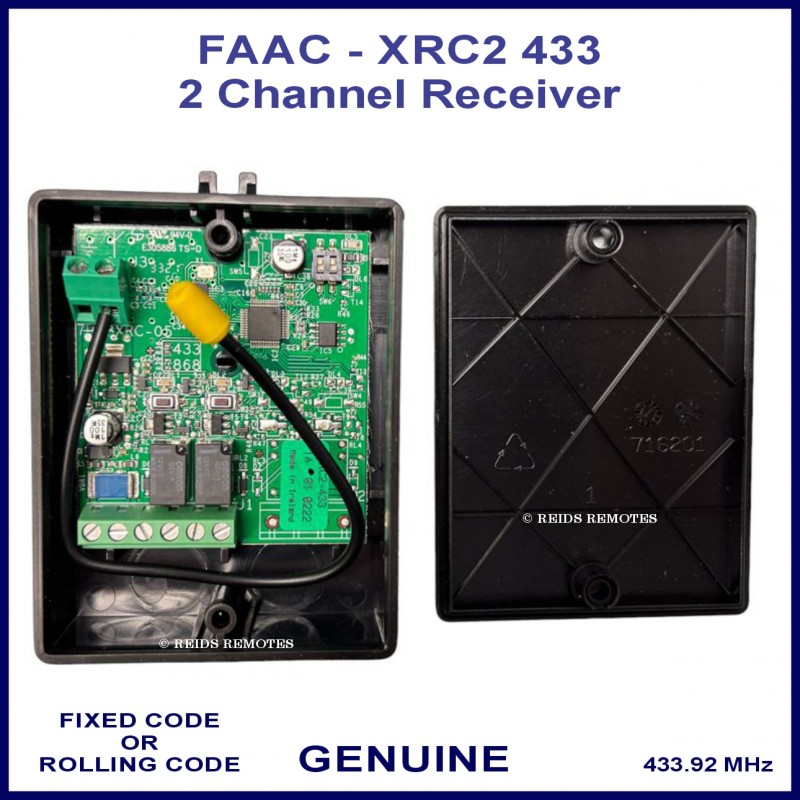

FAAC XRC2 433C stand alone 2 channel receiver 787752

This FAAC stand alone receiver can work with either fixed code remotes or FAAC rolling code remotes but not at the same time. The receiver can only be set up to use one or the other type.

it is compatible with the following series of remotes: DS - SLH - RC

It can operate between 12 V to 24 V.

The receiver is designed to work as follows:

CHANNEL 1 - NO CONTACT  - PULSE ACTIVATION
CHANNEL 2 - NO CONTACT - PULSE OR BISTABLE ACTIVATION

The setting for Channel 2 are set using DIP switch (SW6)

In bistable activation mode CH2 switches state and remains switched until it is activated again the radio control.

These receiver units can be wired using standard 4 core (1 channel + power) or 6 core (2 channels + power) security cable available from most electrical or hobby shops such as Jaycar or Alltronics. We are happy to provide cable for connecting this unit also and it can be ordered from the compatible items tab in 30 cm increments.

An installation manual is included in the packaging.

As this receiver is 2 channel it can operate 2 garage doors so if you have side by side or front and back garage doors you may be able to just use 1 receiver as long as you can run longer wires from the receiver to the garage door control board.

In some cases we can provide wiring diagrams to help with connecting this to your garage motor. Just let us know the make and model of motor you plan to connect it to and we will do our best to provide a diagram or instructions on where to find the auxiliary connectors on the garage motor.

This receiver unit needs constant power and in the case of most overhead sectional door motors you can draw power from the motor no problem as they usually have AUX outputs for this. But in the case of some garage motors particularly roller door motors you may need an external power supply to connect the power as there may not be any aux output points on the motor.

If you are not certain that the remotes you have are compatible please feel free to email us a photo of the remotes and your motors and we will be more than happy to help you work out what options you have and what the simplest solution will be.

We offer a 12 Month Warranty on receivers in line with the manufacturer conditions, so you can buy your new receiver with full peace of mind and confidence that should there be a problem you are covered.

If you have any issues during programming please call us and we will try to talk you through it. We can also come and program your new remote anywhere across the Perth metro area just select Deliver and Program as your preferred delivery method at Checkout.
