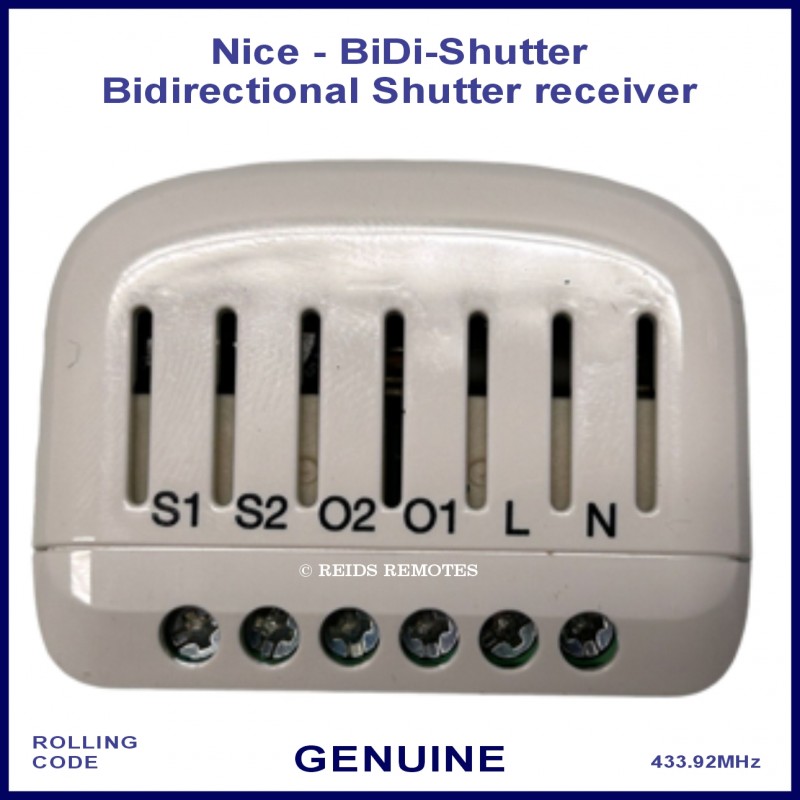

Nice BiDi Shutter interior bidirectional interface for tubular motor

The Nice BiDi-Shutter interface is functional, practical and characterized by simplicity and programming speed , with limit switch adjustment directly from the remote control and automatic calibration of the automation with two simple complete operations. With the remote control it is possible to set two intermediate positions of partial opening of the shutter or venetian blind, in groups or individually, to regulate the air exchange in the room and always have the right atmosphere.

The wired input allows the Nice roller shutter motor interface to manage several tubular motors through a simple wall switch or a practical remote control (without the need for a gateway); or, to be able to integrate it via wire with a gateway.

MAIN FEATURES NICE BIDI-SHUTTER INTERFACE

• One-way and two-way protocol;
• Two programmable intermediate positions;
• Compatible with Amazon Alexa, Google Home and Siri Shortcuts;
• Programming of the limit switches also by radio control;
• Measurement of absorbed current and energy;
• Ability to manage multiple shutters from a single wall switch;
• Possibility of wired integration with BMS.

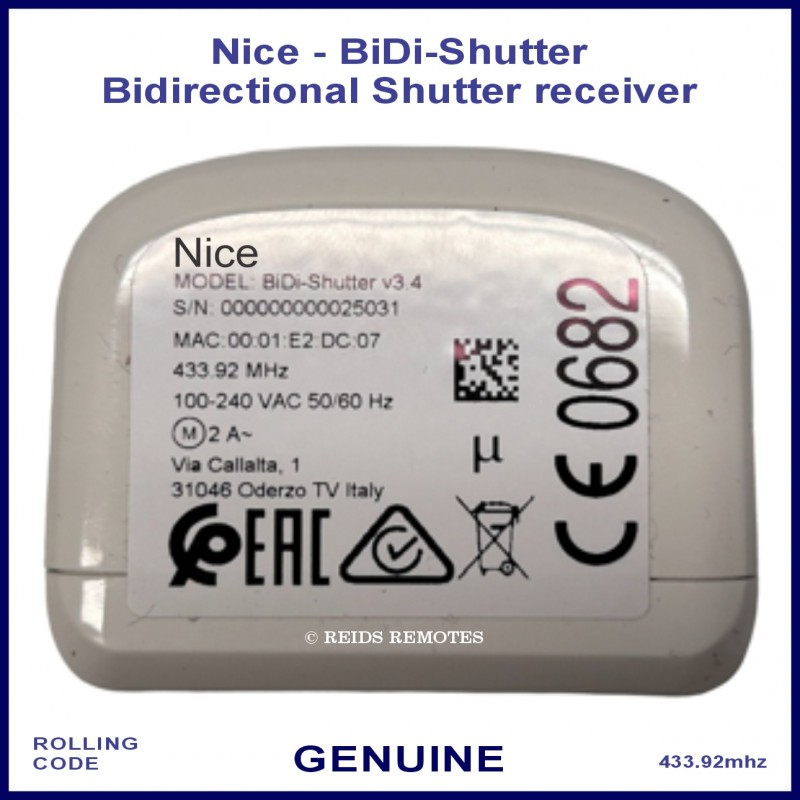

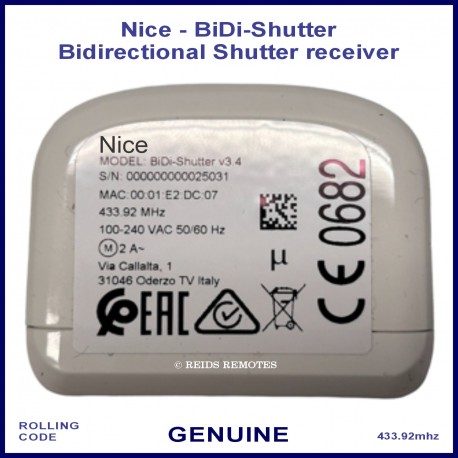

NICE BIDI-SHUTTER MECHANICAL TUBULAR MOTOR INTERFACE ELECTRICAL DATA

• Code: Nice BIDI-SHUTTER;
• Power supply (Vac / Hz): 100–240, 50/60;
• Rated load current (Amps): 2;
• Load type supported: single phase AC;
• Radio frequency (Mhz): 433.05-434.04;
• Max power transmitted (dBm): 10;
• Degree of protection (IP): 20;
• Operating temp. (° C Min / Max): 0–35;
• Dimensions (mm): 45 x 36 x 23 h.

NICE BIDI-SHUTTER COLLABORATES WITH THE YUBII GATEWAY

Through the Yubii Home gateway , the BiDi-Shutter interface automatically moves the shutter based on the brightness detected in the room by the light sensor. In this way, consumption is optimized by ensuring that artificial lighting is switched off during the day, when the brightness detected in the room reaches the preset threshold.

Furthermore, with the addition of a special sensor, if the Nice system detects the presence of CO or fumes in the room, the shutter automatically rises to allow ventilation and optimization of the indoor air quality. Or again, it allows you to close the shutters when the alarm system is active. The possibilities of creating scenarios , which interconnect the devices and functionalities of the smart home, with Nice are practically unlimited.

Let's see in more detail some of the great advantages of the Nice BiDi-Shutter roller shutter interface .

Internal application thanks to its small size: it is possible to install the BiDi-Shutter interface in a junction box, in a wall box or near the tubular motor inside the roller shutter box.

Management of the limit switches of the tubular mechanical motors via the remote control: thanks to the Bidi-Shutter interface it is not necessary to access the motor screws, but it is possible to easily program the limit switch with the remote control.

Two programmable partial positions: possibility to program the intermediate position and the Venetian height or slightly raised position to let a breath of air pass through.

Voice commands: thanks to the gateway you can manage your devices with voice commands wherever you are through the speakers or your smartwatch. Are you busy with other activities? It's morning and you don't want to take the remote control to open the roller shutter? Now you can manage your awning with voice commands through Alexa, Google Assistant and Siri.

Wall switch: thanks to the wired input, you can also manage the shutter through the wall switch or you can use this input for the BMS. Manage your roller shutter via the wall button, hold it down (hold-to-run) or simply press it once. Possibility to manage it using the button or the mono and / or bidirectional remote controls without the need for a gateway or even to integrate it into your BMS.

Management of the Venetian blinds: possibility of having a complete management of the Venetian blinds as well.

Mono and bidirectional together: thanks to the backward compatibility of the interface, if you decide to switch to BiDi-Shutter to replace the previous Nice TT2N one-way control unit, it is not necessary to change the remote control, and the connected devices can be switched on and off even without a gateway.

Simple programming: possibility to program the limit switches of the tubular mechanical motors simply using the remote control, without having to access the motor screws. By following the easy procedure, you can program or modify the limit switch and the partial position of your roller shutter by yourself.

Multi-use: possibility of using it with roller shutters, venetian blinds and whole curtains. It is possible to set two desired partial heights: intermediate position and Venetian height or slightly raised position to let a breath of air pass through. A single solution for roller shutters, Venetian blinds and interior blinds.

Automatic calibration: to make sure that your awning does not lose the position of the limit switch, check and adjust the position of the limit switch every 2 maneuvers. The programming of the limit switches with the BiDi-Shutter interface is automatic. It is sufficient to perform 2 complete maneuvers.

AUTOMATIC SHUTTER MANAGEMENT WITH NICE BIDI-SHUTTER

With Nice BiDi-Shutter you can make all your shutters move together to the desired partial position.

Through the gateway you can use the Nice BiDi-Shutter interface to manage the shutter based on the brightness detected in the room. In this way, you can optimize consumption by reducing the need for artificial lighting during the day.

Use the light sensors to indicate the brightness level in the room and make sure you save energy by automatically turning off the lamps when the detected brightness in the room reaches the preset threshold.

Monitor your smart home wherever you are. Thanks to Nice BiDi-Shutter you can adjust the position of the shutter also through your smartwatch, app or car infotainment based on weather conditions.

Monitor the presence of carbon monoxide or smoke in the room and make sure to ventilate the room through Nice BiDi-Shutter when necessary, in order to maintain the best possible air quality in your room.

Take advantage of the ability to create scenarios that interconnect the devices and features of your smart home. Nice BiDi-Shutter allows you to perform different scenarios, which reflect your habits and preferences.

We offer a 12 Month Warranty on receivers in line with the manufacturer conditions, so you can buy your new receiver with full peace of mind and confidence that should there be a problem you are covered.
